Product Description:

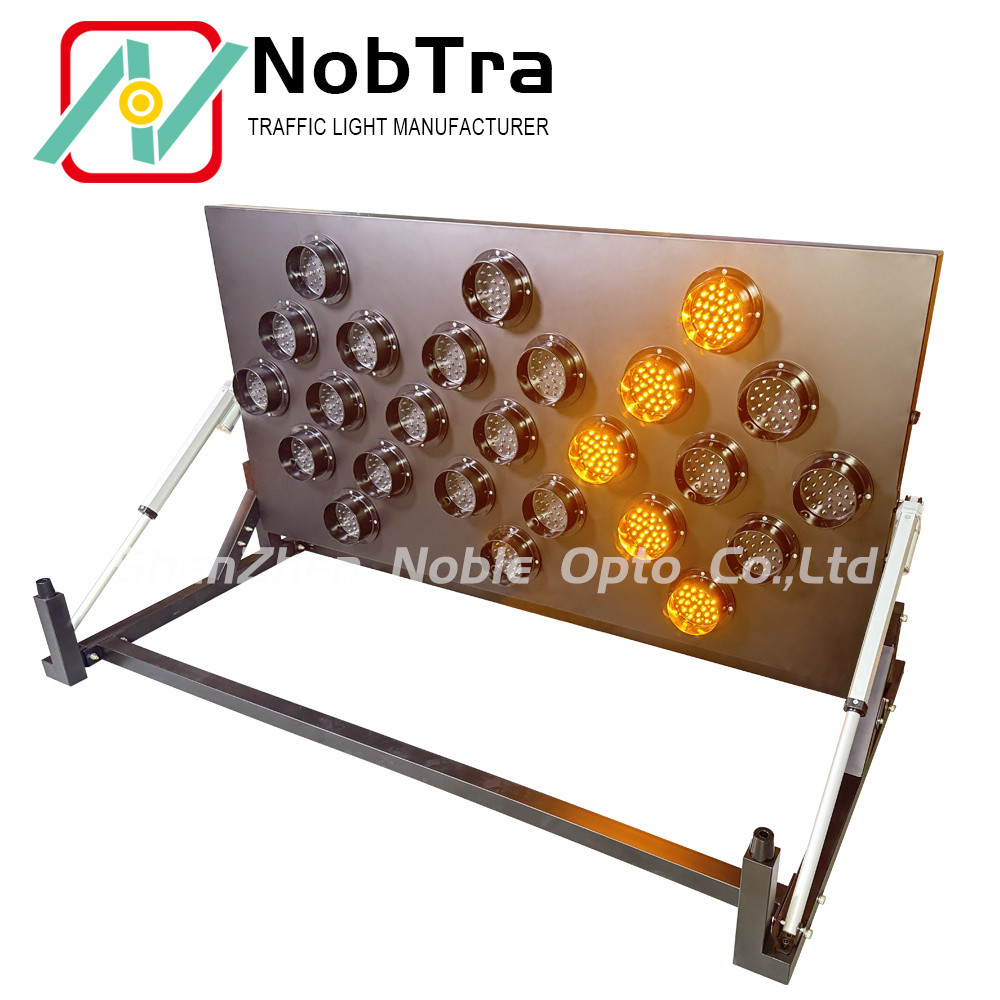

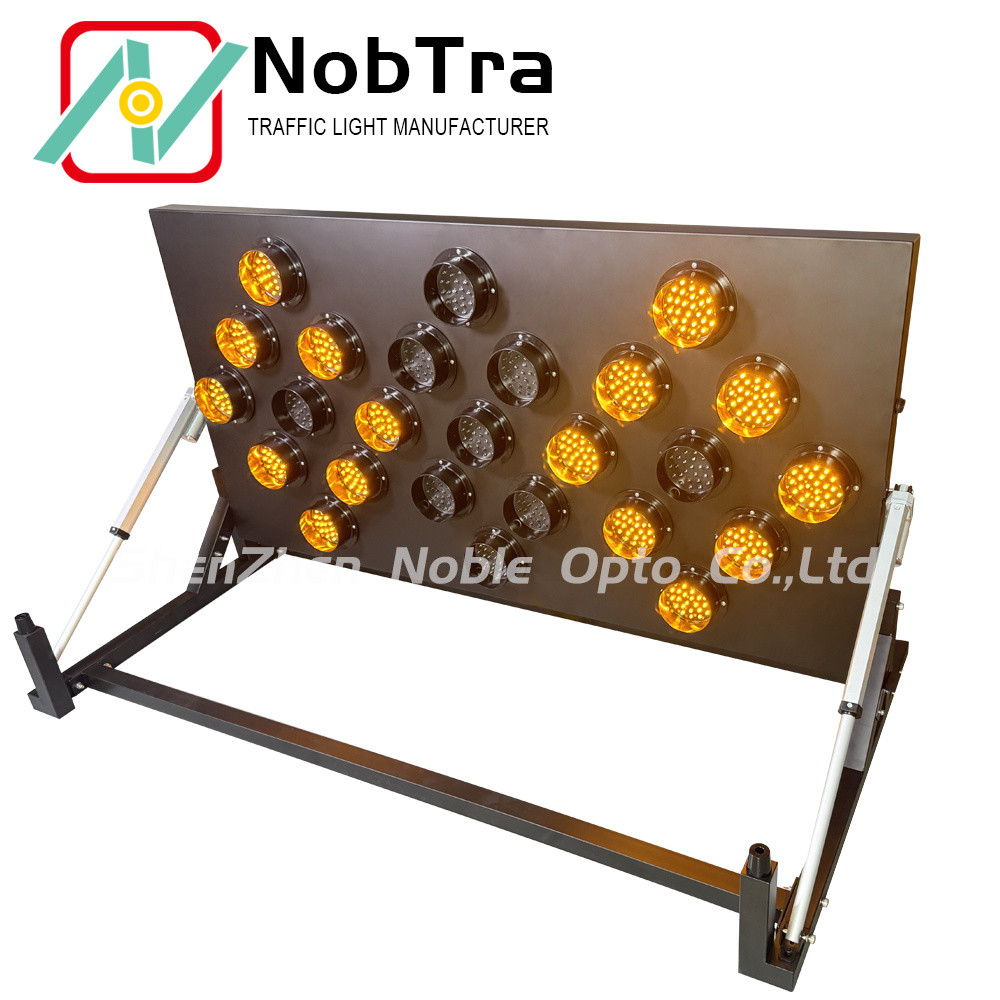

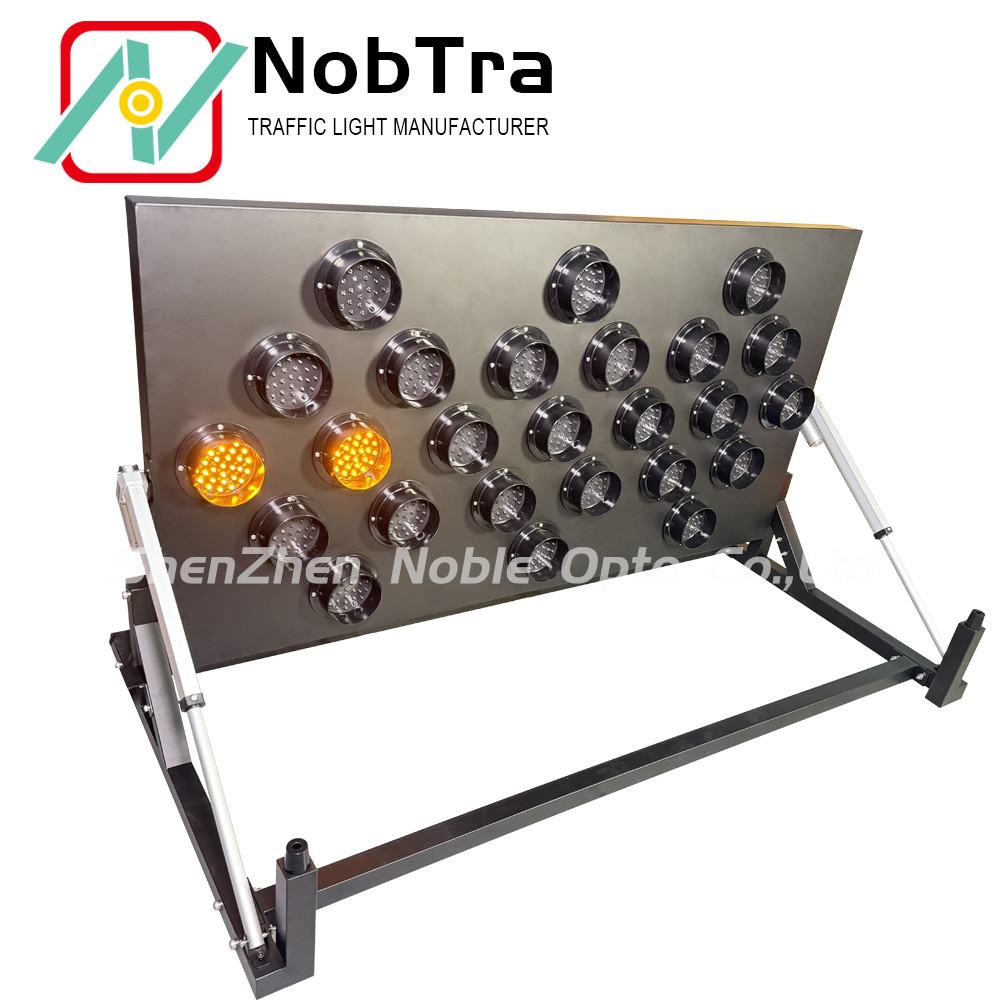

The LED arrow board is an advanced traffic control technology that is controlled by an intelligent MCU. It is equipped with two essential parts: the transmitter and the receiver. The board is designed to provide guidance to drivers regardless of weather conditions, lighting, and other related road situations. One of its prominent features is its ability to automatically extend and retract with an actuator up and down, which is facilitated by a full-duplex transmission and wireless remote control.
The LED arrow board operates on a voltage of 12/24VDC, making it compatible with vehicles with different electrical systems. Its versatile programming allows it to provide 13 different working statuses, including six flashing and seven sequential modes. This makes it an effective tool to manage single lane and multi-lane traffic flow. In addition to this, the board is equipped with a brightness adjustment mechanism that allows users to set the light intensity to 25%, 50%, 75%, or 100%, depending on the road condition and driver requirements.
To ensure maximum performance and convenience, the LED arrow board has a low voltage indicator that lights up if the power supply is below 12V, indicating that an external power source is required. When the board detects a low voltage, it adjusts its brightness to 25% automatically to conserve power while ensuring visibility.
Parameters:
|
Sizes(mm)
|
1500*760*80
|
| Number of LED Lamps |
25 |
|
Panel Size
|
150*76 cm |
|
LED Colar
|
Amber
|
|
Power Consumption
|
40W
|
|
Voltage
|
12V
|
|
Material
|
Painted Iron( Others can be customized) |
| Control System |
Remote Controller |
| Mounting Options |
Vehicle or Trailer-mounted |
| Weight |
69kg |
Features:
Our product is equipped with two controllers, each with a different purpose. One controller is designed for use in the car to control the arrow board. It is convenient and easy to use. The other controller is small, portable, and can be carried around easily.
Both the controllers are equipped with modes, brightness controls, and up and down buttons. The arrow board can be operated at four different brightness levels: 25%, 50%, 75%, and 100%. Additionally, a low voltage indicator has been included to ensure safe operation of the arrow board. If the voltage drops to 11.4V, the indicator light will glow, and the brightness of the arrow board will automatically adjust to 25%.
Our product is designed with an integrated structure, which gives it an exquisite appearance and eliminates any solder joints. The arrow board has been effectively waterproofed by embedding waterproof strips at the door openings. We have conducted multiple tests of aging to ensure that the product is indeed waterproof.
Applications:
Made with high-quality materials, this product is manufactured in China and is CE certified, ensuring that it meets all safety and quality standards. With a minimum order quantity of 1 and a price range of USD545.5/PC-568.1/PC, it is an affordable and reliable solution for traffic management needs.
The LED Arrow Board for Traffic Management is available in various sizes and has a rectangular shape, making it easy to spot from a distance. The bright LED lights ensure that the board is visible even in low light conditions, making it an ideal solution for road maintenance scenarios.
The power source of this product is solar or battery, providing flexibility in its usage. The product comes with a packaging size of 165*88*27cm and has a delivery time of 7-10 working days. Payment terms are T/T and the supply ability is 5000PCS/MONTH.
With its painted iron material, the LED Arrow Board for Traffic Management is durable and long-lasting, making it suitable for use in various weather conditions. Its application scenarios include road maintenance and other traffic management needs.
Overall, the LED Arrow Board for Traffic Management, model NBAB-25VIP, is an affordable and reliable solution for traffic management needs. Its high-quality build, bright LED lights, and flexible power source make it an ideal choice for various application occasions and scenarios.
Support and Services:
The LED Arrow Boards product comes with comprehensive technical support and services to ensure the best possible performance and longevity of the product. Our team of experts is available to assist with any technical issues or inquiries related to the product. Additionally, we offer maintenance and repair services to keep the product running smoothly. Our support and services are designed to minimize downtime and maximize efficiency, ensuring that our customers get the most out of their LED Arrow Boards.
FAQ:
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer and have been in the traffic industry for more than 15 years.
Q: Can I add my logo on your arrow board?
A: Yes, we can help you to make your own logo to build your brand.
Q: Where are the LED Arrow Boards manufactured?
A: The LED Arrow Boards are manufactured in Shenzhen, China.
Q: What certifications do the LED Arrow Boards have?
A: The LED Arrow Boards have CE certification.
Q: What arrow patterns are available?
A: It can form left arrow, right arrow, double arrow (both directions), and caution bar (a straight line).
Q: What are the packaging details for the LED Arrow Boards?
A: The packaging details for the LED Arrow Boards are carton, 165*88*27cm.
