Detail Information

Highlight:

LED arrow board with remote control

vehicle mounted arrow board 100mm

yellow steel housing arrow board

Product Description

25 lamp, 30 LEDs Arrow Board

25 led Road Construction Arrow Board

Used as warning sign on garbage truck tail,sprinkler truck,excavator,maintenance truck etc.

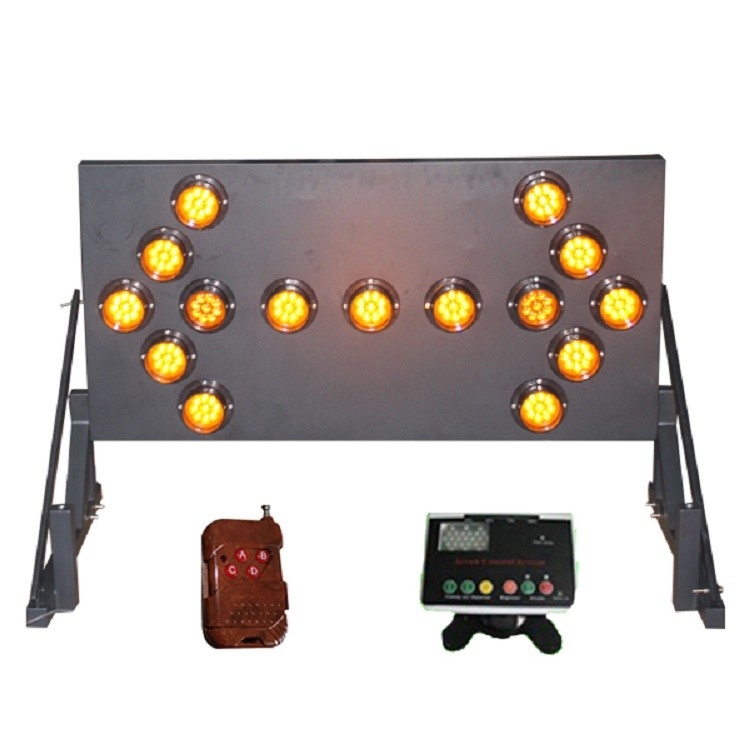

25 led Road Construction Arrow Board with portable

the remote controller controls the various modes of Arrow Board and the stretching bracket.

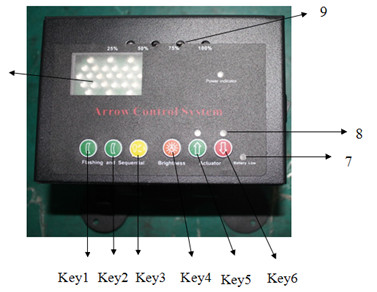

Arrow Board Car controller

As Well as in construction site,and highway,to further improve the security between workplaces.

Key	Function
Key1	Press each time,modes switch between(1)(2)(3)(4)(5)(6)
Key2	Press each time,modes switch between(7)(8)(9)(10)(11)(12)(13)
Key3	Press Key 3 after press key1 or key2,the correspondent flashing or sequential modes begin
Key4	Brightness adjustment key,to switch four modes(25%,50%,75%,100%)
Key5	Actuator's up key,press one time to lift,press second time to stop.

00:00

00:39

This is the work video of LED Arrow Board, and also the production situation of the factory. Carry out a full range of inspections before shipment.

Detailed Images

Introduction of product advantages or application effect or application mode

1)LED Arrow board is controlled by intelligent MCU,has transmitter and receiver two parts.

2)LED Arrow board is used Full-Duplex Transmissions,wireless remote control,automatically extending and retracting with actuator up and down.

3)Operating Voltage is 12/24VDC

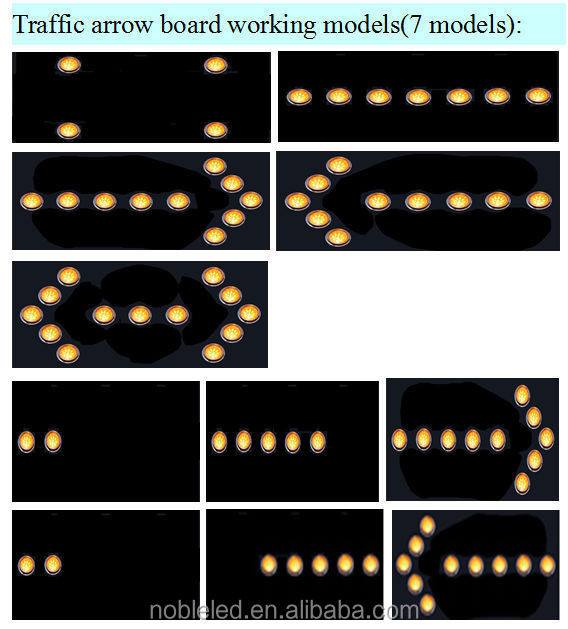

4)13 kinds of work status:6 flashing,7 sequential.

5)Brightness adjustment:25%,50%,75%,100%.

6)If choose external power supply,when power is lower than 12V,low voltage indicator is on,and the brightness adjust to 25% automatically.

Production details

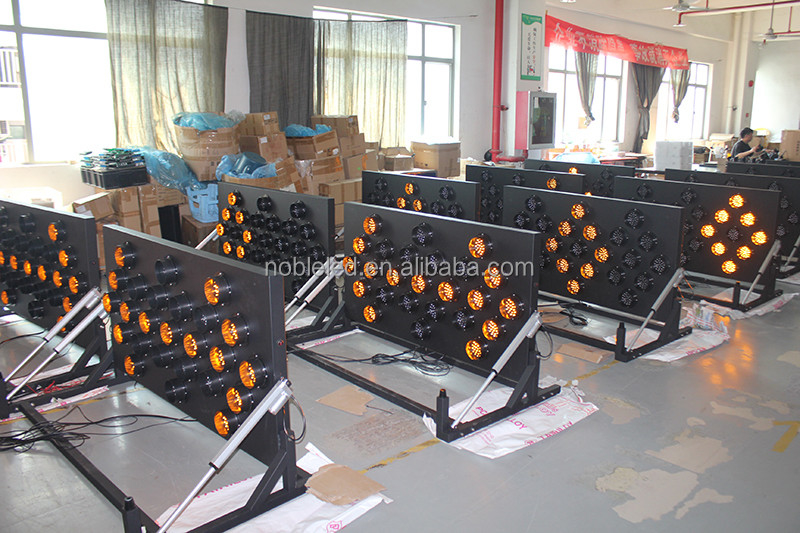

Production drawing

Factory order drawing, a large number of LED Road Construction Arrow Board.Support inspection and visit to the factory.

Product Presentation

Product introduction: application, function, style, etc

The following configuration is a product diagram + table with the specific parameters of the configuration product

Size	1500mm760mm60mm 1200mm600mm60mm
Housing	Iron
Lamps led quantities	9,15,30
Visibility	up to 1000m
Voltage	12/24 VDC
Working modes	25 lamps-5 flashing modes,7 sequential modes.15 lamps-5 flashing modes,2 sequential modes.

Tag:

Place of Origin:	China
Brand Name:	NobTra
Certification:	CE
Model Number:	NBAB-25S

Minimum Order Quantity:	1
Price:	USD580-USD560
Packaging Details:	CARTON
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

25 Lamps Remote Control Vehicle Mounted Used Arrow Board Lens Diameter 100mm yellow color steel housing 13 kinds of working mode

LED arrow board with remote control

vehicle mounted arrow board 100mm

yellow steel housing arrow board

Production drawing

solar powered LED arrow board,

wireless remote LED arrow board,

LED arrow board with warranty
