Product Description:

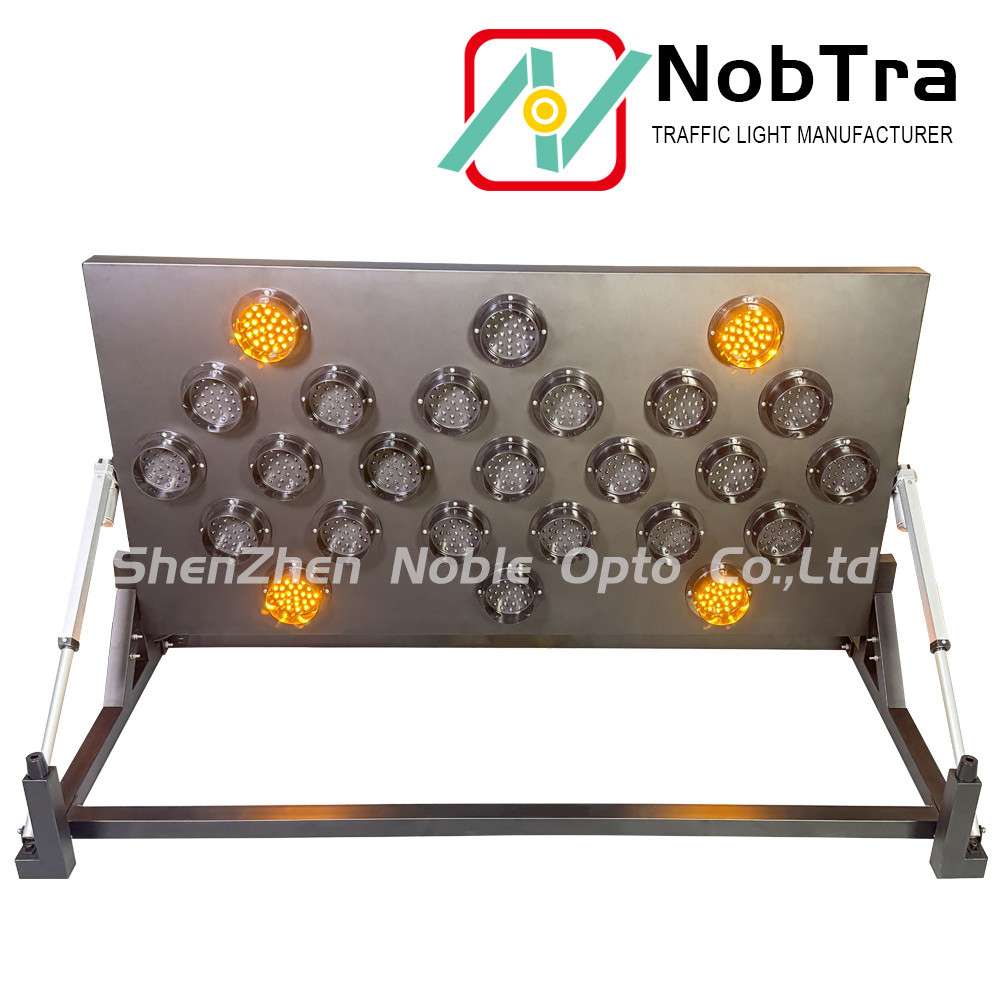

LED Arrow Board
The LED Arrow Board is an intelligent electronic device that is controlled by an MCU (microcontroller unit). It consists of two parts, the transmitter, and the receiver.
The board uses Full-Duplex Transmissions, which allows it to support wireless remote control. This feature enables the board to automatically extend and retract with the actuator up and down.
The operating voltage of the LED Arrow Board is 12/24VDC. It has 13 types of work status, including 6 flashing and 7 sequential modes. It also has brightness adjustment settings that allow you to choose from 25%, 50%, 75%, and 100% brightness levels.
Additionally, if you choose to use an external power supply, the low voltage indicator will turn on when the power drops below 12V. At this point, the LED Arrow Board will automatically adjust the brightness to 25%.
Parameters:
|
Sizes(mm)
|
1500*760*80
|
| Number of LED Lamps |
25 |
|
LEDs Per Lamp
|
30 LEDs |
|
Lens Diameter
|
100mm
|
|
Power Consumption
|
40W
|
|
Voltage
|
12v
|
|
Current
|
Max 8A
|
| Control System |
Remote Controller |
| Mounting Options |
Vehicle or Trailer Mounted |
| Weight |
69kg |
Features:

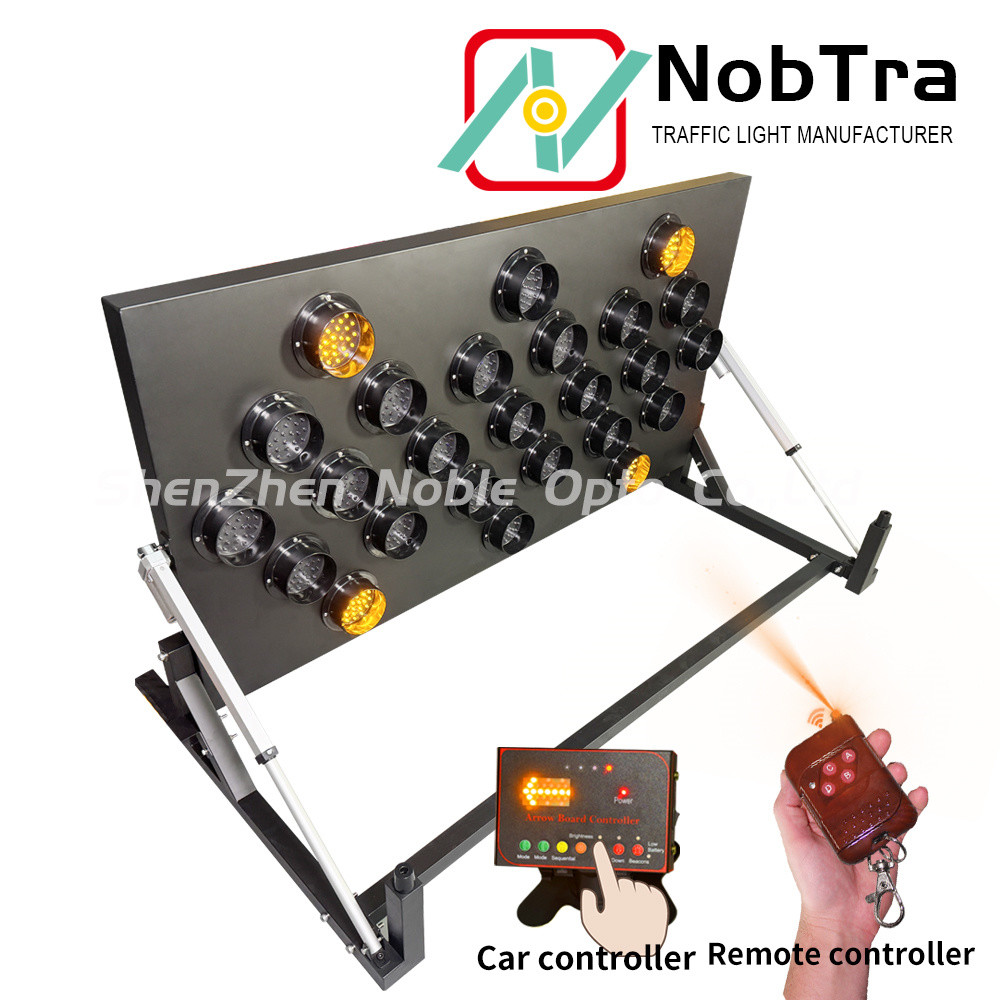

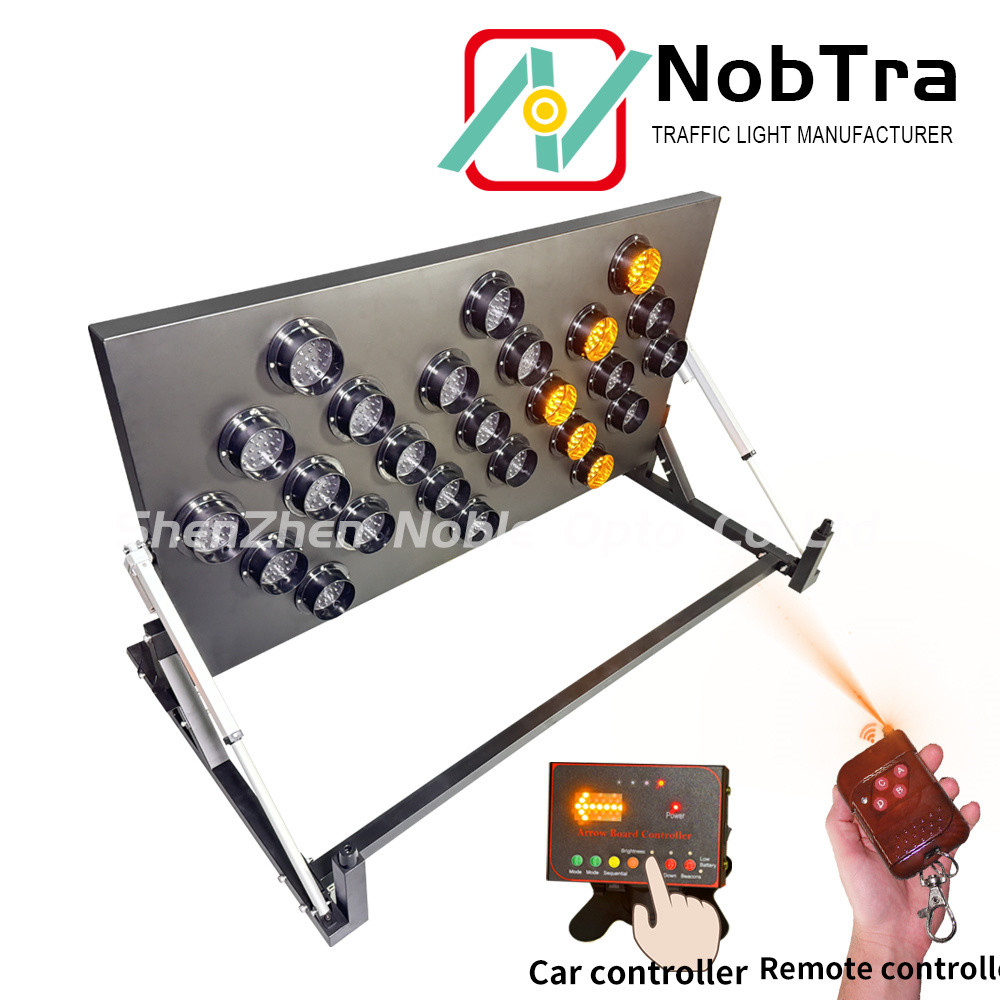

Our arrow board features two controllers. One controller is designed to be placed in the car so that you can easily control the arrow board from the front seat. The other controller is designed to be small, convenient, and portable enough for you to take with you wherever you go.
Both controllers can control various modes, brightness levels, and move the arrow board up and down with ease. When it comes to brightness levels, you have the option to choose from four different settings: 25%, 50%, 75%, and 100%. Additionally, there is a low voltage indicator that will notify you if the battery voltage falls below 11.4V. If this happens, the arrow board lights will automatically adjust to 25% brightness.
Our arrow board features an integrated structure with a sleek design that is free of any unsightly solder joints. It also achieves effective waterproofing, thanks to waterproof strips that are embedded in the door opening. Multiple aging tests have been conducted to confirm its effectiveness in keeping water out.
Applications:
- Road Construction Projects: The NobTra NBAB-25VIP LED Arrow Board is ideal for use in road construction projects, where it can be used to direct traffic and manage flow. Its bright LED lights are highly visible, even in low light conditions, making it an effective tool for keeping workers and drivers safe.
- Traffic Control: The LED Arrow Board can also be used for traffic control at events, such as concerts, festivals, and sporting events. With its remote control, it's easy to adjust the board's settings and direct traffic as needed.
- Emergency Services: Emergency services, such as police and fire departments, can use the LED Arrow Board to direct traffic around accidents and other emergencies. Its bright lights and remote control make it easy to use in high-pressure situations.
The NobTra NBAB-25VIP LED Arrow Board is made in China and meets CE certification standards. It has a minimum order quantity of 1 and costs between USD545.5/PC-568.1/PC, depending on the order quantity. It comes packaged in a carton that measures 165*88*27cm and has a delivery time of 7-10 working days. Payment terms are T/T, and the product has a supply ability of 5000PCS/MONTH.
The LED Arrow Board operates on 12/24VDC and has a control system that is operated by remote control. It can be powered by either solar or battery, making it a versatile tool for a variety of applications. The LED chips are imported from Taiwan, ensuring high-quality performance and long-lasting durability. The product has a rectangular shape, making it easy to mount and install in a variety of locations.
Support and Services:
The LED Arrow Boards product comes with technical support and services to ensure its optimal functioning and maintenance. Our team of experts is available to assist you with any issues related to the product, including installation, troubleshooting, and repairs. We also offer regular maintenance services to ensure that your LED Arrow Board continues to perform at its best. Additionally, we provide training sessions to help you and your team understand how to use the product effectively and safely. Our goal is to ensure that our customers receive the best possible support and service for their LED Arrow Board.
FAQ:
Q: Can the LED arrow board be operated remotely?
A: Yes, we provide with the remote controller for our LED Arrow Board.
Q: What is the place of origin of this LED Arrow Board?
A: The place of origin of this LED Arrow Board is Shenzhen, China.
Q: Does this LED Arrow Board have any certifications?
A: Yes, this LED Arrow Board has CE certification.
Q: How is this LED Arrow Board packaged for shipping?
A: This LED Arrow Board is packaged in a carton, with dimensions of 165*88*27cm.
Q: What is the delivery time for this LED Arrow Board?
A: It depends on your location, you can send us an inquiry with your address, so we can calculate the estimated time and let you know.
Q: What are the payment terms for this LED Arrow Board?
A: T/T. 30% to start the producing and the rest 70% before the shipping
Led-25-lamps-Arrow-Board-With-Beacon.pdf
