Product Description:

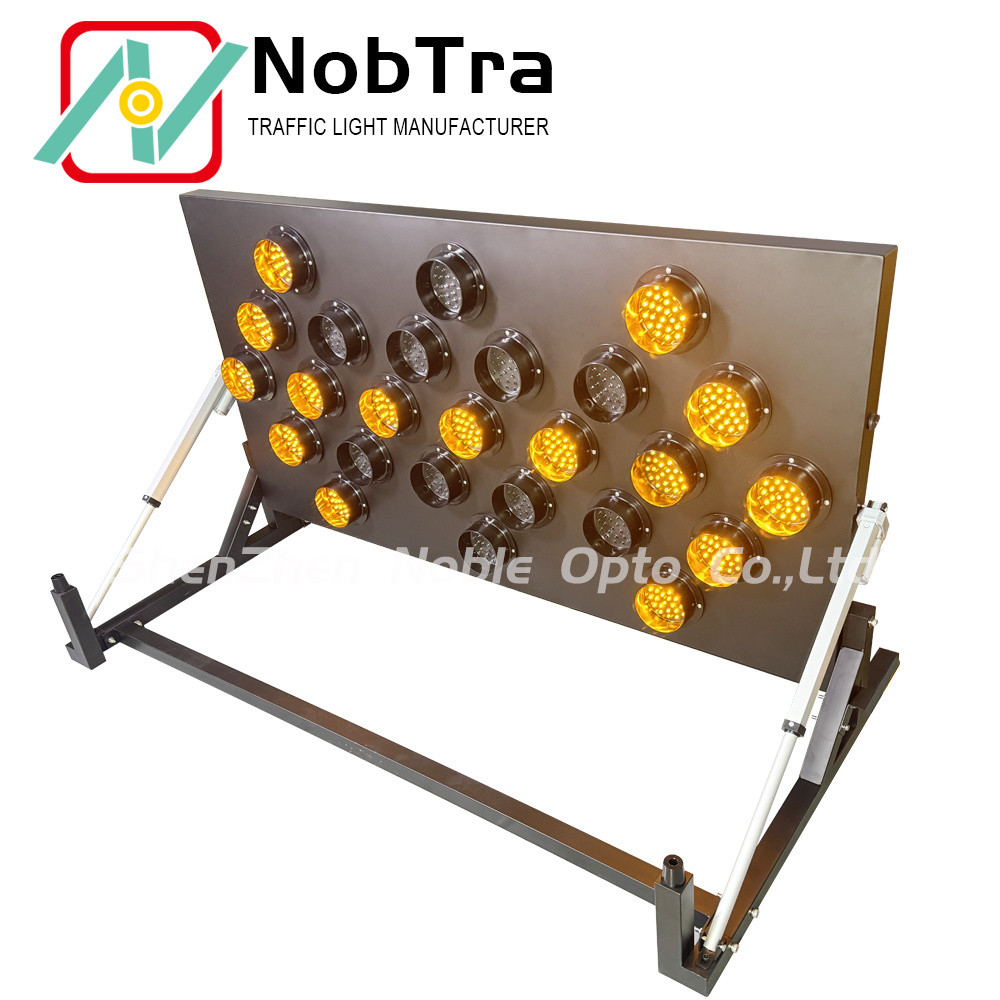

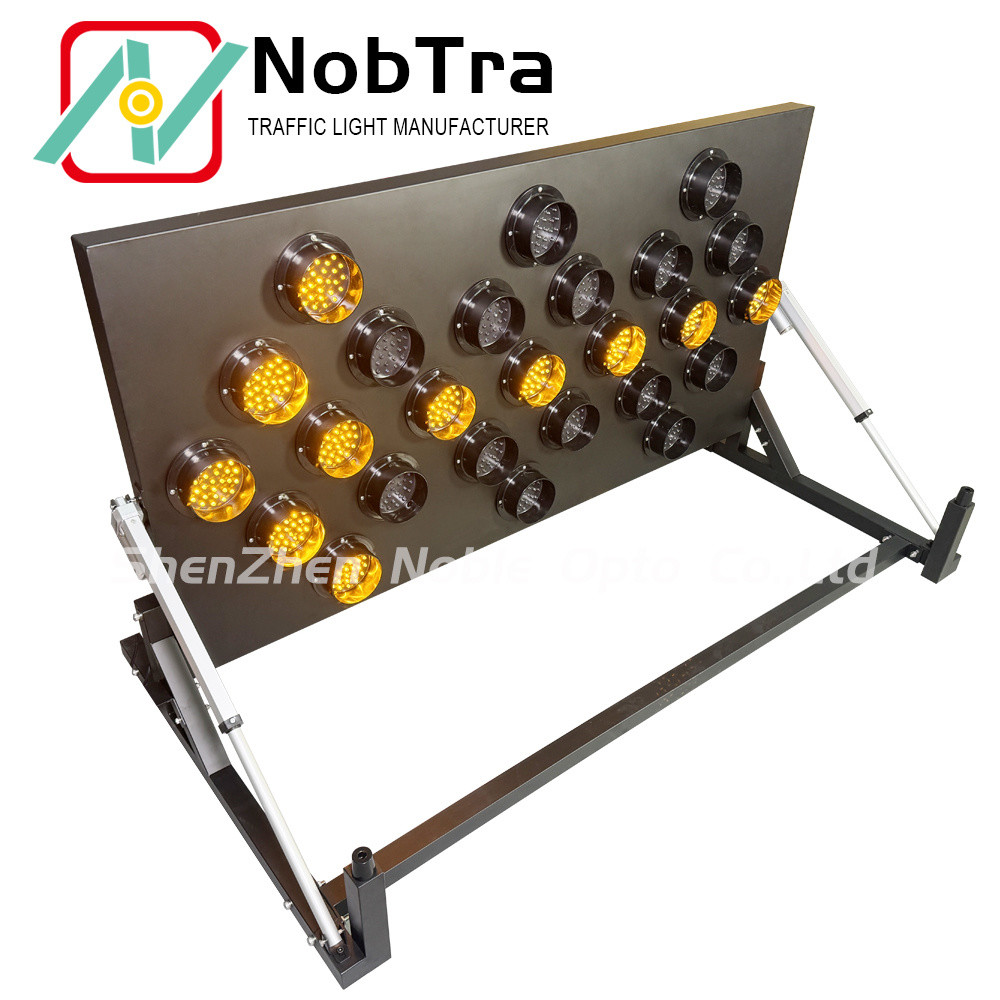

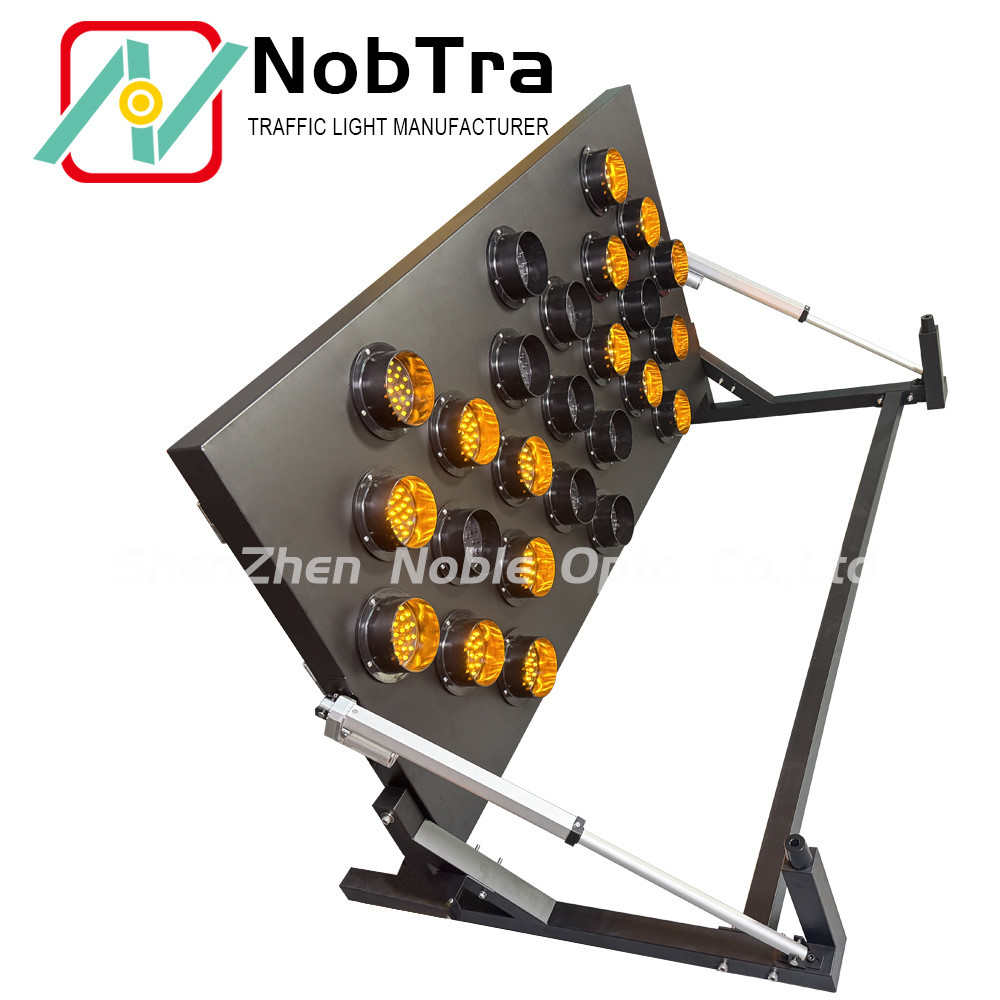

Intelligent LED Arrow Board
The LED Arrow Board is equipped with an intelligent MCU that controls its operations. The board has two parts, the transmitter, and the receiver.
The LED board utilizes Full-Duplex Transmissions, wireless remote control, and automatically extends and retracts with an actuator up and down for easy visibility.
The operating voltage of the LED Arrow Board is 12/24VDC and it has 13 kinds of work status: 6 flashing and 7 sequential. It also has brightness adjustment options of 25%, 50%, 75%, 100%.
If an external power supply is chosen, they will be a low voltage indicator when the power is lower than 12V, and the brightness will adjust to 25% automatically.
Product Parameters:
|
Sizes(mm)
|
1500*760*80
|
| Number of LED Lamps |
25 |
|
LEDs Per Lamp
|
30 LEDs |
|
LED Colar
|
Amber
|
|
Power Consumption
|
40W
|
|
Voltage
|
12V
|
|
Brightness
|
25%, 50%, 75%, 100% can be choosen |
| Control System |
Remote Controller |
| Mounting Options |
Vehicle or Trailer-mounted |
| Weight |
69kg |
Features:
The arrow board comes with two controllers for easy operation. One controller is designed to be installed in the car to control the arrow board, while the other little controller is more convenient and portable for outdoor use. Both controllers are equipped with various functions that can control the modes, brightness, and up and down movements.
Additionally, users have the flexibility to choose from four different brightness levels, including 25%, 50%, 75%, and 100%. When connecting the arrow board to a 12V battery, the low voltage indicator will be activated when the voltage drops to 11.4V. This indicator is designed to adjust the arrow board lights' brightness to 25% automatically, ensuring operational safety.
To ensure a seamless appearance and effective waterproofing, this arrow board adopts an integrated structure without solder joints. Waterproof strips are also embedded at the door opening to further enhance waterproof capabilities. Multiple tests of aging have confirmed that this design can effectively prevent water damage.
Applications:
With a visibility distance of over 500 meters, the NBAB-25VIP LED arrow board is perfect for directing drivers and pedestrians during temporary road closures or construction projects. Whether you need to reroute traffic or guide people around an obstacle, this arrow board will ensure that everyone stays safe and on track.
The NBAB-25VIP LED arrow board is available in various sizes to suit your specific needs and requirements. And with a vibrant amber color, it is easy to see even from a distance. Plus, it can be powered by either solar or battery, giving you flexibility and convenience when it comes to installation and use.
Ordering the NBAB-25VIP LED arrow board is easy and affordable. You can purchase as few as one board, with a price range of USD545.5/PC-568.1/PC. The product comes packaged in a carton with dimensions of 165*88*27cm, making it easy to transport and store. And with a delivery time of 7-10 working days and payment terms of T/T, you can start using your arrow board in no time.
So if you need a reliable and high-quality LED arrow board for temporary traffic control or road closures, look no further than NobTra's NBAB-25VIP. With a supply ability of 5000PCS/MONTH, we are ready to meet all of your traffic control needs.
Support and Services:
Our LED Arrow Boards come with comprehensive technical support and services to ensure the best performance and longevity of the product. Our team of experts is available to assist with installation, operation, and maintenance of the product. Additionally, we offer repair services and replacement parts to keep your LED Arrow Board functioning properly. Our technical support team is available 24/7 to answer any questions or concerns you may have regarding the product.
FAQ:
Q: Can the brightness of the arrow board be adjustable?
A: Yes, through our controller, you can adjust the brightness to 25%, 50%, 75%, and 100%.
Q: Is the arrow board waterproof?
A: Yes, we've done the waterproof test for our arrow board, and it rating IP54.
Q: Where is the LED Arrow Boards product manufactured?
A: The LED Arrow Boards product is manufactured in Shenzhe, China.
Q: What is the certification of the LED Arrow Boards product?
A: The LED Arrow Boards product is certified with CE.
Q: Do you have MOQ for LED arow board?
A: The minimum order quantity for the LED Arrow Boards product is 1.
Q: What are the packaging details for the LED Arrow Boards product?
A: The packaging details for the LED Arrow Boards product is a carton with dimensions of 165*88*27cm.
