Product Description:
Product No. NBAB-25VIP is designed to be mounted on trucks, making it perfect for mobile traffic control. Its yellow color enhances visibility even in low light conditions, ensuring the safety of drivers and pedestrians alike.
The control system of our LED Arrow Board is wireless, allowing for easy and efficient operation from a distance. The wireless remote control ensures that the operator can remain at a safe distance, away from oncoming traffic.
Our LED Arrow Board can operate in extreme temperatures, making it ideal for use in any weather condition. It can withstand temperatures ranging from -40°C to 85°C, ensuring its reliability even in harsh environments.
In conclusion, our Bright LED Arrow Board is a must-have for any traffic control operation. With its high-visibility LED chips, wireless remote control, and ability to operate in extreme temperatures, it is the perfect solution for ensuring the safety of drivers and pedestrians on the road.
Technical Parameters:
| Product type: |
NBAB-25VIP |
| Number Of Lamps |
25pcs |
| LED chips: |
Import from Taiwan |
| Control Distance |
30 Meters |
| Brightness |
Can be adjustable |
| Kinds Of Work Status |
6 Flashing, 7 Sequential |
| Operating Voltage |
12/24VDC |
| Mounting Type |
Trailer Or Vehicle Mount |
| Material |
Iron |
| Visibility Distance |
Over 1000 Meters |
| LED Diameter: |
85mm |
| Pusher: |
With double push |
| Application: |
Road maintenance |
| Size |
1.5 Meters |
| Waterproof level: |
IP54 |
| Working temperature: |
-40 degree to 60 degree |
| Certifications |
CE |
| Control System |
Wireless Remote Control |

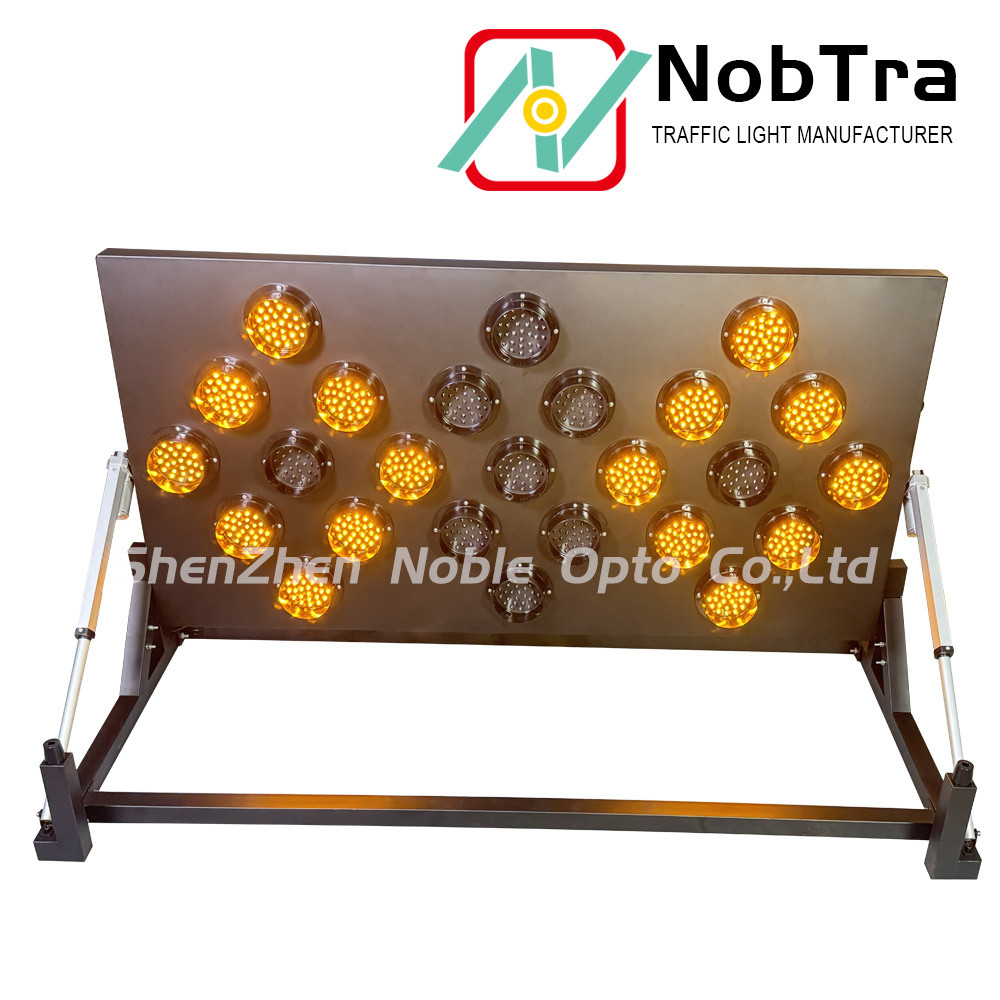

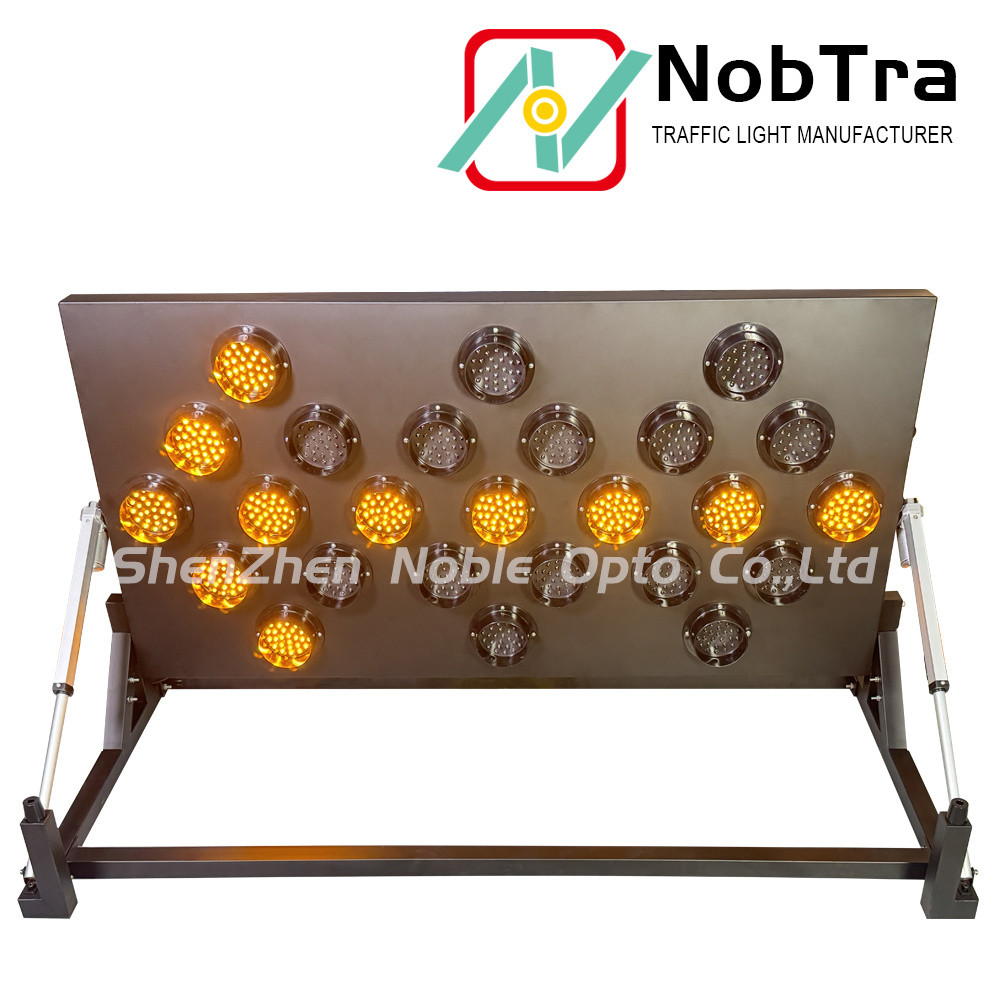

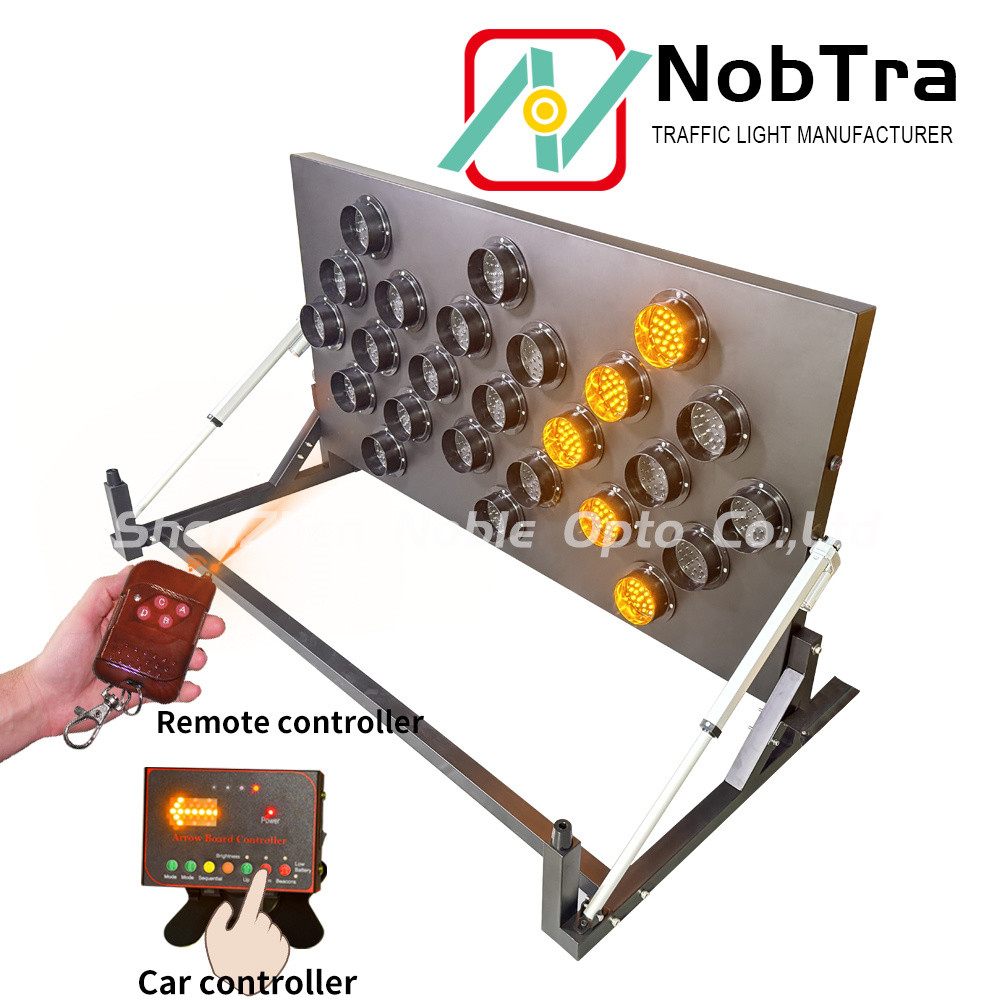

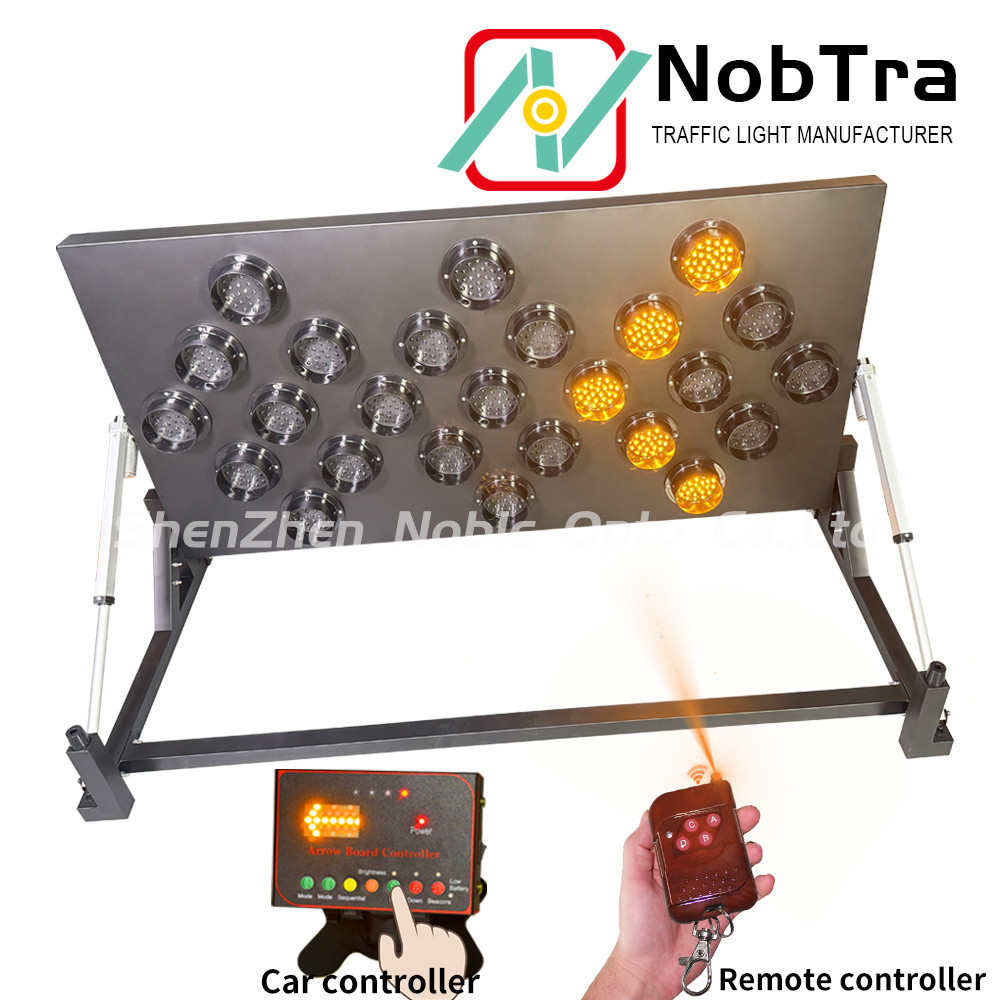

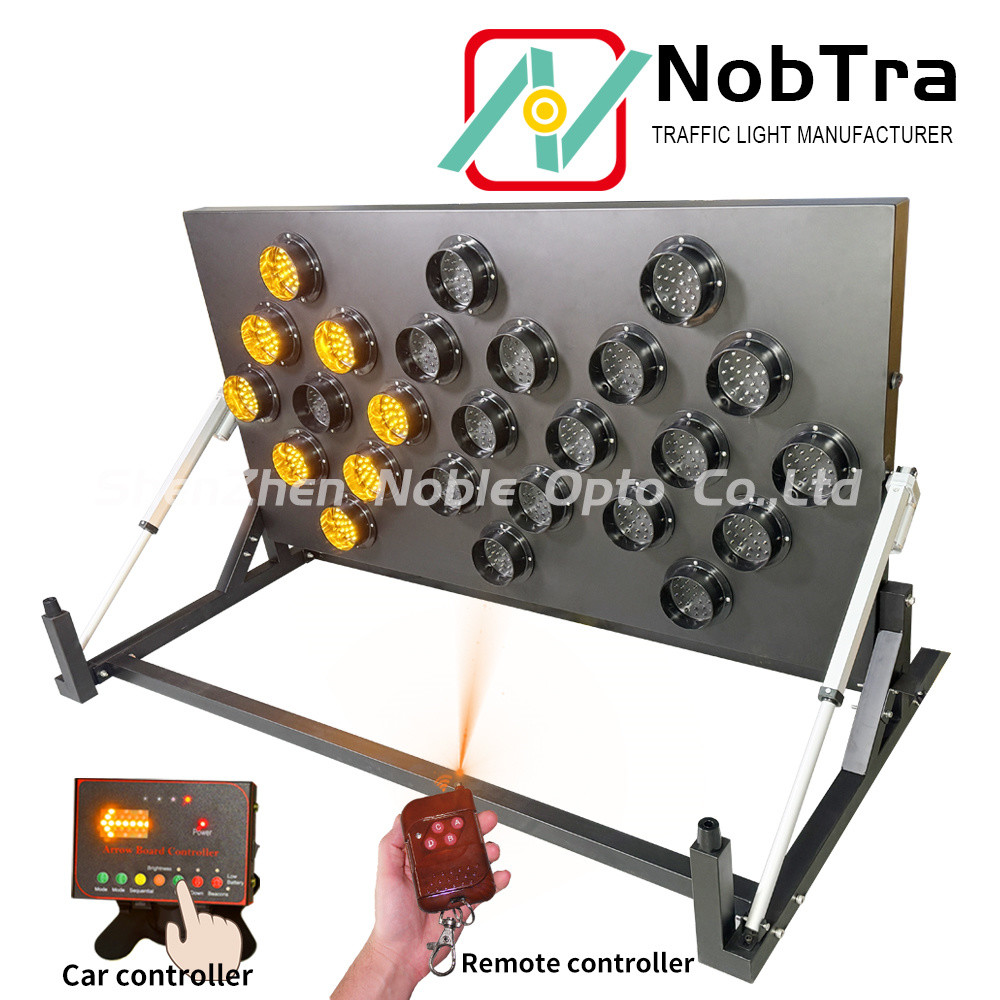

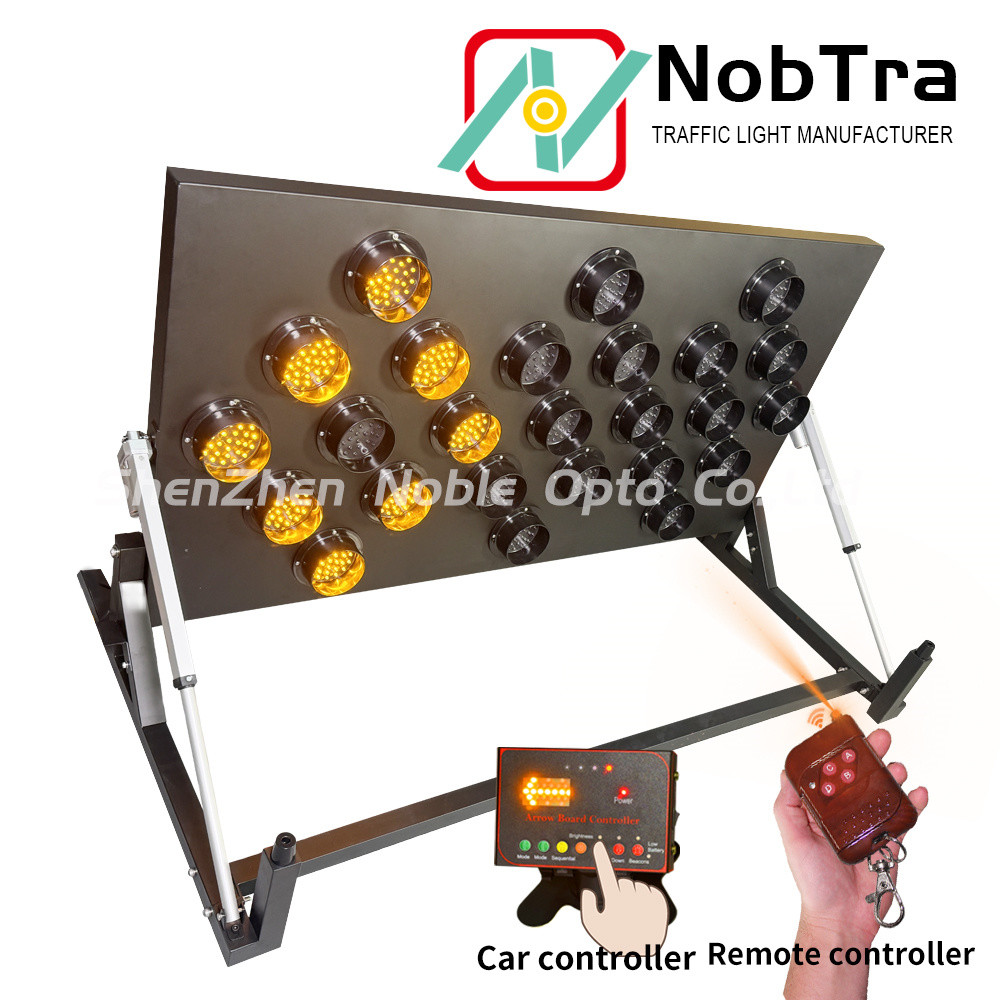

Details pictures display:
Application:
1. Place it in front of highway maintenance operations to remind the driver to drive carefully.
2. Place it in dangerous palce on the highway where there are hidden traffic safety hazards to remind drivers to pay attention safety.
3.It's suitable for road sweepers, Road maintenance engineering machinery and other slow-moving vehicle on the road, as well as highway
guidance and maintenance, ETC. To remind the vehicle behinds to move slowly in front of the vehicle.
Function:
|
|
|
|
|
Press each time,modes switch between(1)(2)(3)(4)(5)(6)
|
|
|
Press each time,modes switch between(7)(8)(9)(10)(11)(12)(13)
|
|
|
Press Key 3 after press key1 or key2,the correspondent flashing or sequential modes begin
|
|
|
Brightness adjustment key,to switch four modes(25%,50%,75%,100%)
|
|
|
Actuator's up key,press one time to lift,press second time to stop.
|
Advantage:
A. 25%,50%,75% 100% can be adjusted at will, if the external power supply is selected, when the power
supply is lower than 12V, the low voltage indicator will light up, and the brightness will be automatically adjust to 25%.
B. The whole body is painted with good anti-corrosion and rust prevention, the thickened shell is processed by high-quality materials,
the product is sturdy and durable., not easy to paint, and has a wide range of usage scenarios.
C. The car body adopts a combined structure, which can be disassembled when shipped, saving space means saving shipping costs.
Customization:
1) For the LED arrow board, we can print your company logo to our product. But it wil charge some costs.
2). For the Size. We can provide the 1.2 Meters, 1.5 Meters and 1.8 Meters. If you want the different size.
Please offer the details dimension to me. Then our R&D deparment will confirm whether can do it.
3)We can print your company logo to our cartons outside. But it will charge some costs.
4) If you want to add the beacon light or warning light to the LED arrow board. It can add.
Packing Details:
| 1 Carton |
1 Set |
| Carton size: |
165x88x27cm |
| G/W: |
69.2KG |
| Production time: |
5-6 working days for sample order
11-15 working day for 50-100pcs
16-19working day for 101-300pcs
20-25 working day for 301-500pcs
|
| Noted: |
Includinng the pearl cotton protection, designed cartons, double push, car control, Remote control, User manual. |
Shipping Method:
- Shipping via Internataional express. Such as the DHL, UPS, Fedex, UPS, TNT and special line.
- Shipping via Train. If your quantity was large and want to save some shipping costs.
- Shipping via Sea. The delivery time was long. But shipping costs will be cheap.
- Shipping via Air. The delivery time will be short. But shipping costs will be expesenive.
- FOB shen zhen, guangzhou, dongwan,zhongshan, ningbo and so on.
- Tracking number will be provided after the goods sent out.
FAQ:
Question: What power options are available?
Answer: The LED arrow board working voltage was 12-24VDC.
Question: Could you offer technical guide for the product install?
Question: With details user manual for the installation and our engineer can offer the online guide.
Question: How to operate the LED arrow board?
Answer: The remote control and car control can change the LED arrow board working.
Question: Do you accept the OEM?
Answer: Yes, we have professional R&D department. Base on your actual demand, we can OEM the product for you.
Question : Could we visit your company?
Answer: Yes, I'm glad to meet you in our factory. We will share with our factory production environment for you.
Question: What's MOQ?
Answer: MOQ was 1pcs
Question: Are you a manfacturer or trading company?
Answer: We are manufacturer of the LED Arrow board, solar radar traffic speed sign and traffic control system.
Question: What is the warranty?
Question: With 2 years quality warranty. If the accessories had broken and due to the quality problems. We will send a new parts for replacement.
