Product Description:

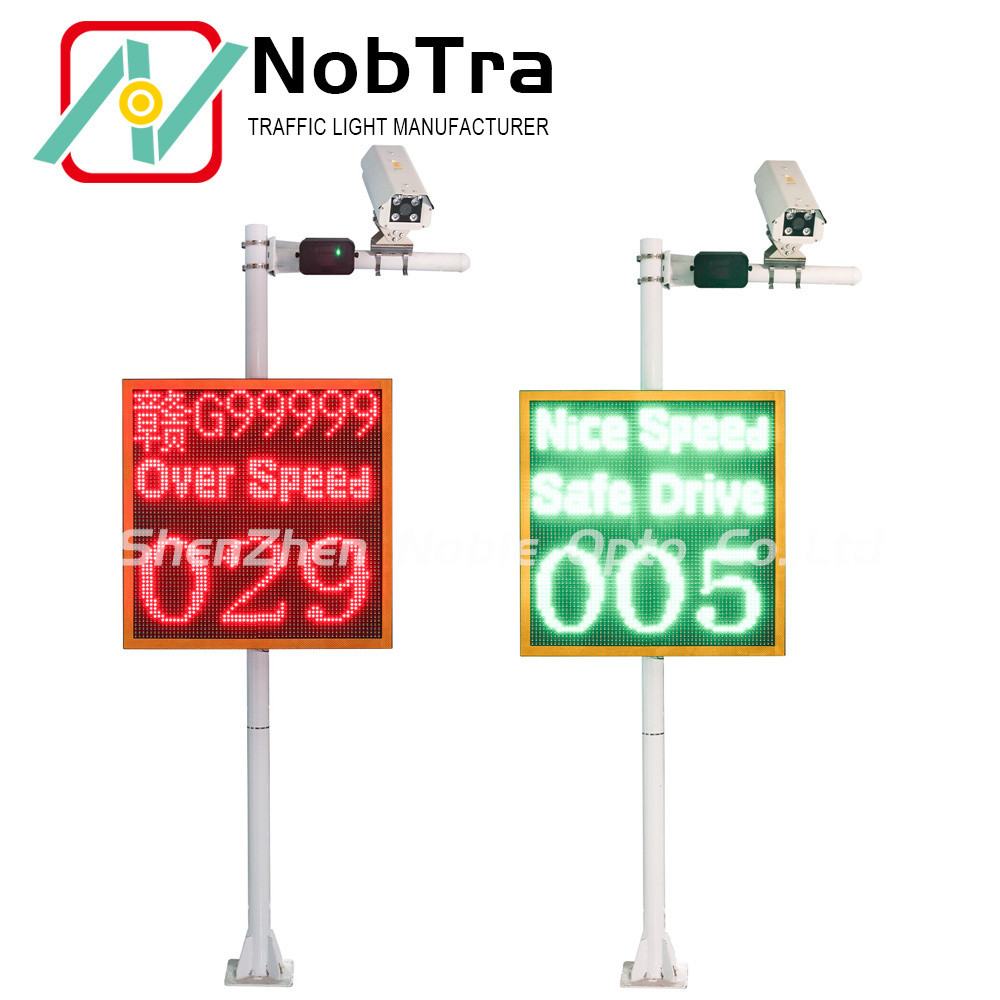

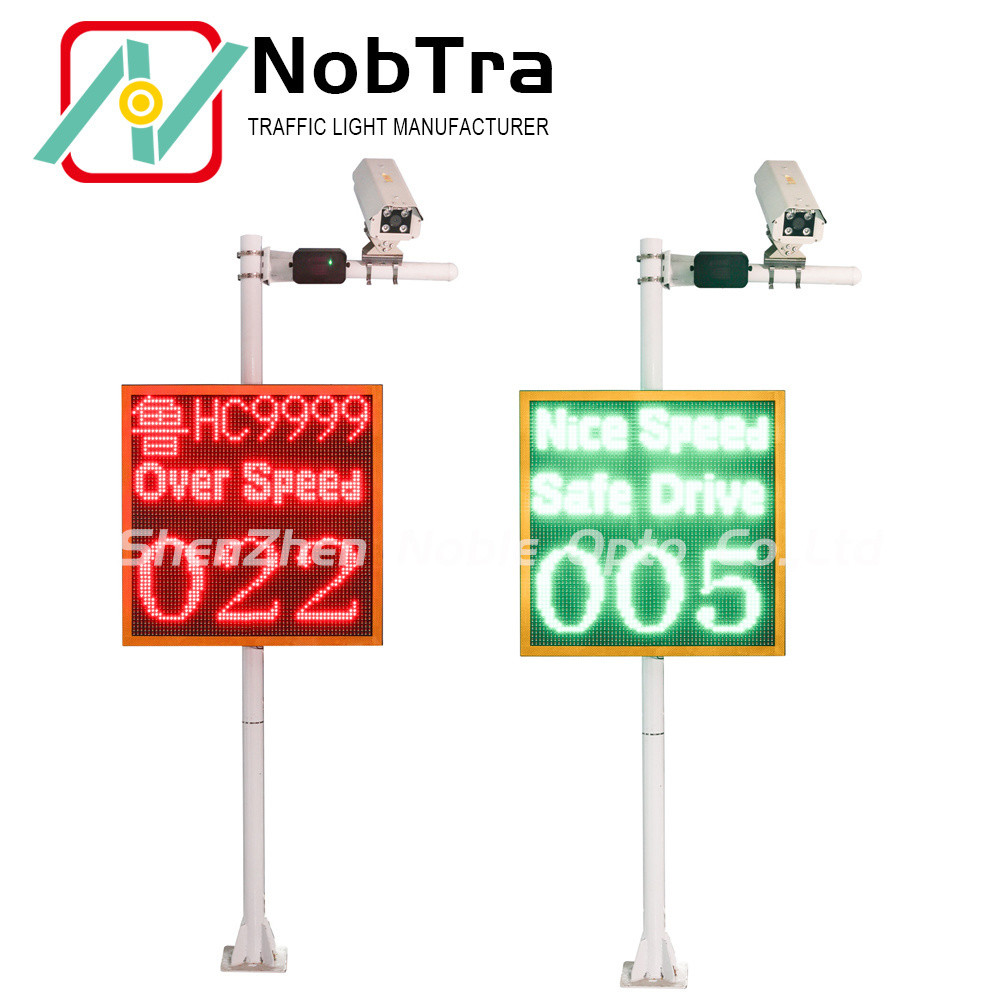

The NobTra hot sales 4 line traffic Radar Speed Sign functions through a combination of radar speed detection and LED technology. This cutting-edge device provides real-time speed information of passing vehicles directly to drivers, thereby improving road safety. Typically, this speed feedback sign is composed of three core elements: a speed limit sign, a radar-based speed measurement unit, and an electronic display board. The display board shows the speed of the detected vehicle, and in situations where multiple vehicles are detected simultaneously, it will indicate the speed of the fastest vehicle among them.
Designed with cost-effectiveness in mind, the NobTra 4 line Traffic Radar Speed Sign featuring a face display offers a compact and highly visible solution that is also energy-efficient. Its lightweight and portable construction allow for easy installation in various locations as needed. By incorporating essential features at an affordable price point, this driver feedback sign supports the continuous safety of neighborhoods and communities over an extended period.
This radar speed sign integrates a speed limit indicator and is capable of displaying the speed of vehicles within its detection range on an LED screen instantly. Widely used for post-radar speed measurement applications, the vehicle speed feedback sign delivers immediate speed data to drivers, encouraging safer driving behaviors and increasing overall traffic safety.
Employing advanced radar technology, the NobTra 4 line Traffic Speed Sign not only displays the current speed on an LED screen but also visually distinguishes between normal and speeding conditions. For average speeds, the speed is shown in green, while exceeding the speed limit triggers a change to red, alerting drivers to reduce their speed. Research has shown that such vehicle speed feedback signs are effective in lowering instances of speeding, significantly enhancing traffic safety.
Features:
This device provides ten adjustable sensitivity levels, allowing users to customize the responsiveness to their preferences. Sensitivity level 1 offers the highest sensitivity, while level 10 delivers the lowest, enabling precise tuning to meet individual needs.
In addition to sensitivity adjustments, brightness can be modified across ten distinct levels. Level 1 represents the dimmest setting, whereas level 10 corresponds to the brightest, giving users control over illumination intensity.
The product is constructed using imported high-quality raw materials, including premium high-brightness light-emitting diodes (LEDs) manufactured in Taiwan. These LEDs ensure exceptional brightness and a prolonged lifespan. The lamp beads exhibit vivid and clear colors, guaranteeing excellent visibility in both daylight and nighttime environments.
Equipped with advanced imported professional traffic radar technology, the device features a high-precision, real-time vehicle display that delivers accurate and reliable speed measurements. It also incorporates robust anti-interference capabilities, maintaining consistent precision under various conditions.
The radar speed limit indicators offer customizable options. Common preset speed limits include 30, 40, 50, and 60 km/h, with the flexibility to set other speed values based on specific requirements.
This three-digit, two-color radar speed sign supports multiple power supply methods such as solar power, alternating current (AC), direct current (DC), or battery power. When operated with solar energy, it can run continuously for 7 to 10 days during periods of rain or insufficient sunlight.
The NobTra radar speed sign is fully sealed and waterproof, making it suitable for deployment in harsh weather conditions. This design ensures long-term durability and reliable performance in diverse environments.
Applications:
This system is designed for use in a variety of intersection types, such as two-way intersections, T-junctions, and four-way intersections. Its versatility makes it suitable for managing different traffic scenarios.
In addition, it is specifically implemented at highway intersections to promote smooth traffic flow and enhance safety for all road users.
Furthermore, this system plays an important role at the entrances and exits of parking lots, helping to effectively control the movement of vehicles in these areas.
Its applications also extend to school zones, where it contributes to creating a safer environment for students and pedestrians alike.
It is also employed at highway entrances, exits, and ramps, facilitating efficient traffic control for vehicles merging on and off the highway.
Moreover, factory parks and industrial zones utilize this system to regulate transportation activities within their premises, ensuring orderly vehicle movement.
Finally, it is widely used on urban roads and local city streets, addressing the everyday traffic management requirements of busy metropolitan areas.
Parameter for 130KM/H LPR camera
|
Video compression standard:
|
H.264/H.265/MJPEG;
|
| Video resolution: |
640*360,704*576,1280*720,
1920*1080
|
| Compression output rate: |
512Kbps~5000Kbps
|
|
Frame rate:
|
1-25 frames, default 25 frames
(1920 * 1080)
|
| Audio Coding: |
G.711/AAC；
|
|
VPN virtual private network:
|
Support the establishment of
virtual private network through
Open VPN
|
|
Resolution power:
|
1920(H) x 1080(V)
|
|
Low illumination:
|
0.01LUX(white light)
|
| Electronic shutter: |
0-1ms or customized
|
|
Matching lens:
|
Matching lens
|
|
Standard lens:
|
Automatic focus lens
|
Customization:
1. The language of the phone App software. Such as the Spanish language, france language and Thailand language.
2. The dimension of the traffic speed limited sign can be OEM. Please offer the details dimension pictures.
3. The outside cartons can be printed your company logo. Such as print your company name or website.
4.We can print your company logo to the shell of traffic speed limited sign.
5. The carton size also can be OEM. But there was quantity requriement.
6. The function of traffic speed sign can be OEM.
4 line traffic speed sign package information:
| Quantity |
1 Carton |
| Carton size: |
88*78*19cm |
| G/W: |
21.4KG |
130KM/h LPR camera Package information:
| Quantity |
1 Carton |
| Carton size: |
88*78*19cm |
| G/W: |
21.4KG |
FAQ:
Question1: What material of the 4 line traffic radar speed sign?
Answer1: With Iron material.
Question2: Is free for the phone app setting software?
Answer2: Yes. It's free.Only you purchase our radar speed sign. Then we can offer phone app for you.
Question3: Do you accept the OEM for the radar speed sign?
Answer:3: Yes. Base on your actual requirement. OEM can be acceptable.
Question4: What's quality warranty for the solar power radar speed sign?
Answer4: With 2 years quality warranty for the speed sign and 1 years for the 100watt solar panel.
Question5: What's waterproof for the 4 line traffic speed limited sign?
Answer5: With IP54 and used for the outdoor environment.
Question6: How about the radar sensor module?
Answer6: With the integrated radar module and high sensitvity.
Question7: What's install height for the 4 line traffic speed sign?
Answer7: We suggestion the install range was 2.5 Meters to 4 Meters
