WIFI Connection LPR Traffic Speed Sign With Safe Drive LED Limited Sign
Product parameters:
| Product type |
NBP10-L4 |
| Material: |
Iron Material |
| Application: |
Intersection/Highway |
| Panel size: |
640mm*640mm |
| Brightness: |
6500 nits |
| Overspeed record |
Need work with LPR camera |
| Speed measuring error |
<1 KM/H |
| Radar Detection Distance: |
Standard with 200 Meters |
| Working voltage: |
12-24VDC, 220VAC |
| View angle: |
140 |
| Color: |
Red, Green |
| Piex: |
10mm module |
| Power consumption: |
Red: 150watt
Green: 130watt
|
| Display: |
LPR/Message/warning message/PM/Vehicle speed/ |
| Install height: |
2.5-4 Meters |
| Quality warranty: |
2 years |
| Waterproof rate: |
IP54 |
Brife Introduction:
The vehicle speed feedback sign is a device equipped with a speed limit sign and can display the speed of passing vehicles in the detection area on the LED screen in real-time. The vehicle speed feedback sign is widely used in the subsequent radar speed measurement for traffic speed measurement.
The LPR radar speed system displays the speed of the vehicle on the LED screen through radar speed measurement. The advanced speed feedback sign can also display the green speed value for average speed, and the read speed value for Overspeed to warn the driver. Drivers pay attention to controlling their speed. Surveys have shown that vehicle feedback signs can be effective in reducing vehicle speed.
In addition, the speed feedback sign can also be equipped with a speeding camera, and the vehicle can take a photo of the speeding vehicle when it is speeding, and send it back to the control center.

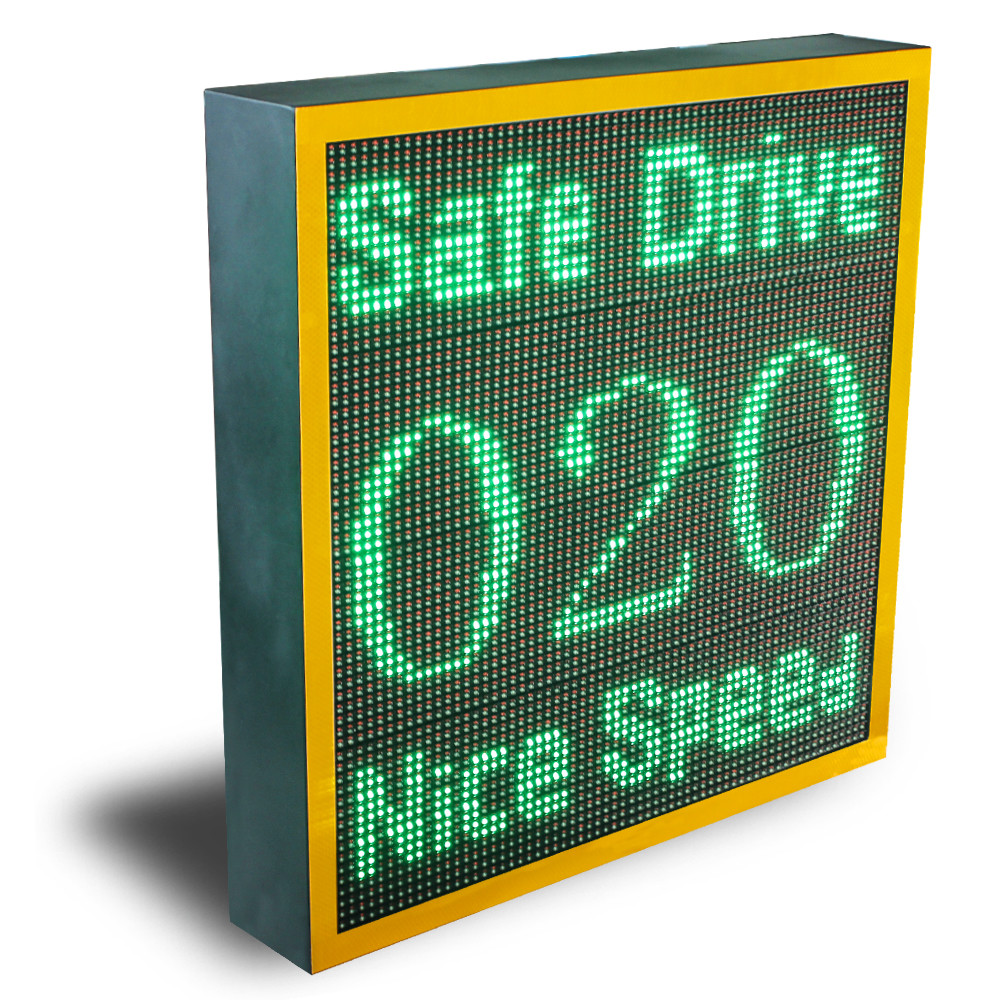

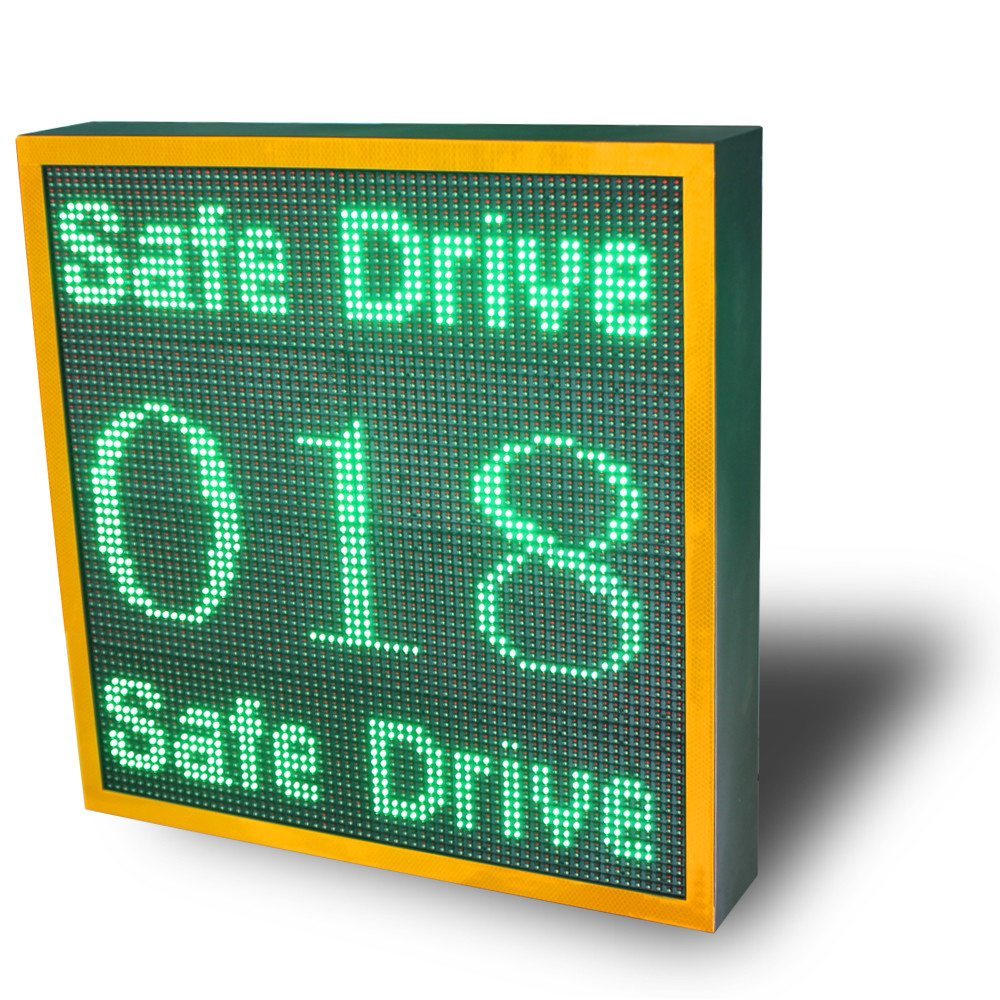

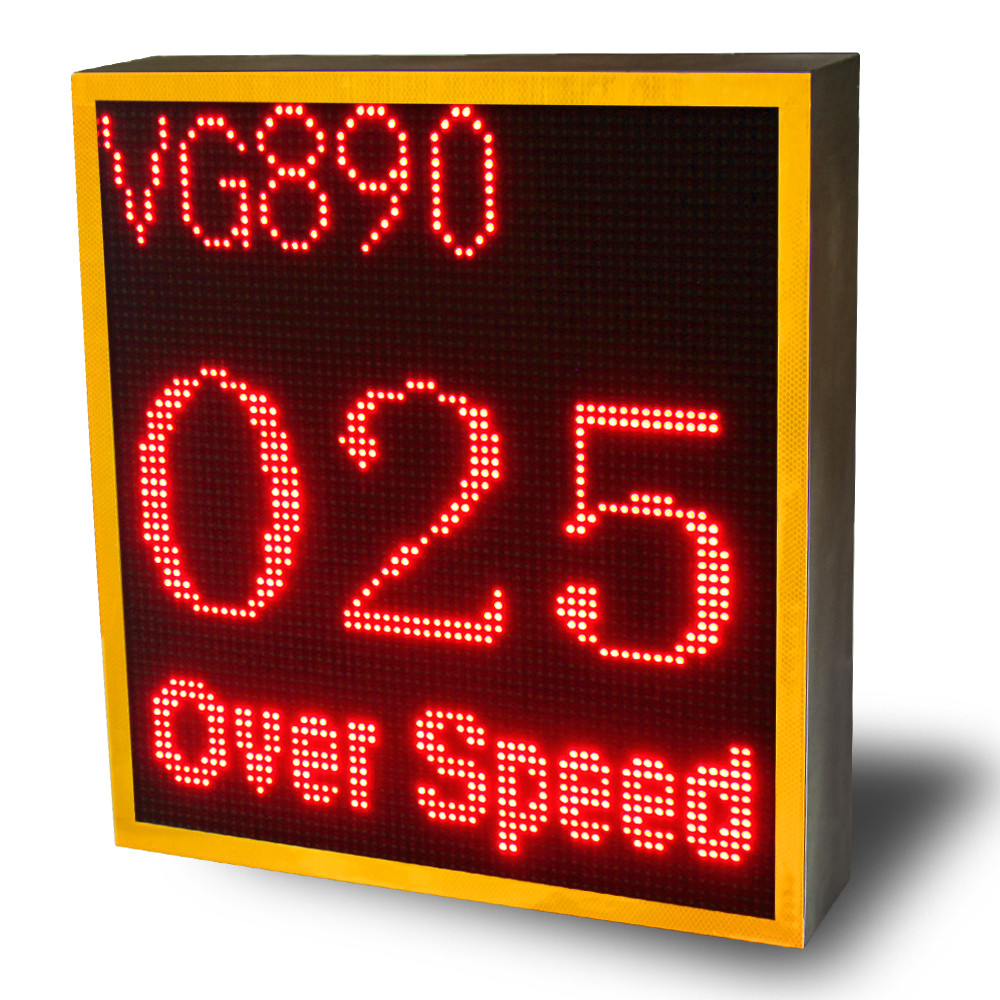

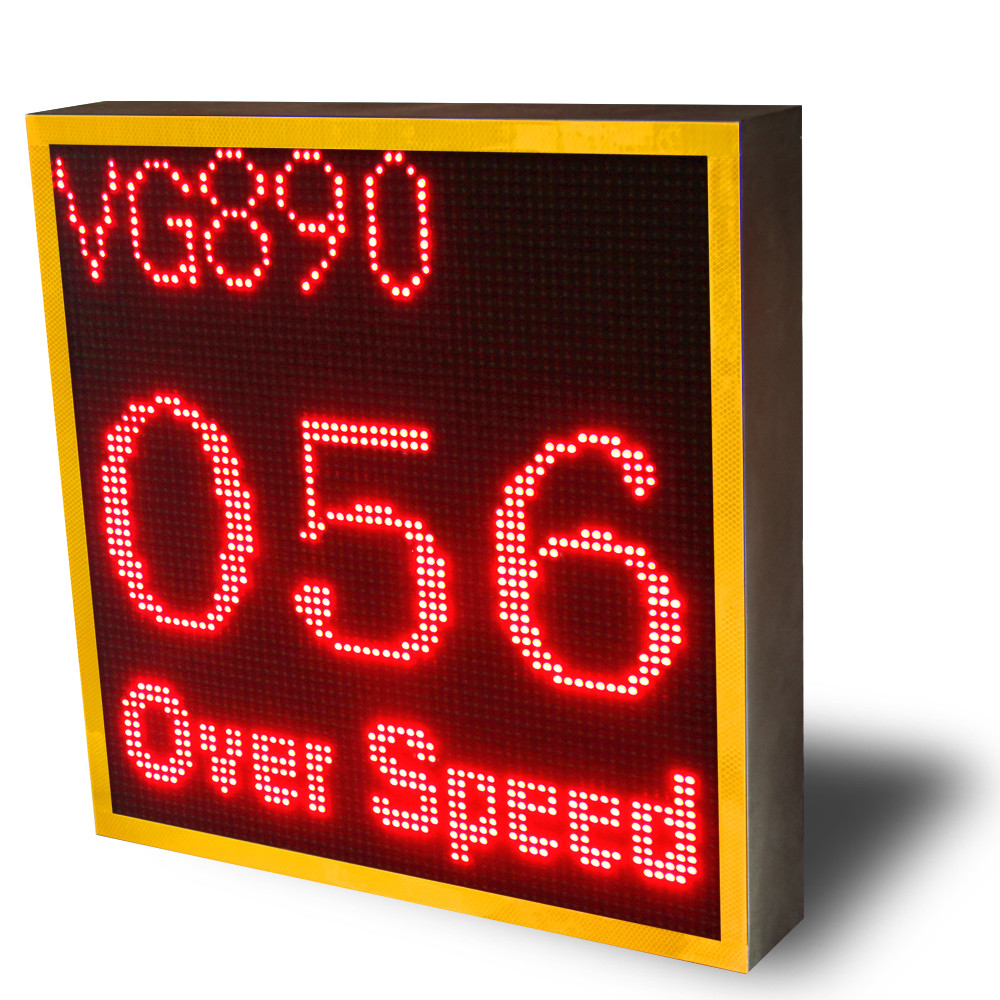

Product details pictures:
Package information:
| 1 Carton |
1 Set |
| Carton size: |
77X76X19CM |
| G/W: |
20.3KG |
| Production time: |
3-5 working day for sample order
6-10 working days for 10-50pcs
10-15 working days for 51-100pcs
16- 20 working days for 101-300pcs |
Product advantage
1. The NobTra radar speed system can adjust the brightness using the mobile APP, and there are ten levels of brightness. 1 is the darkest and 10 is the brightest. The brightness can be adjusted according to the environment in which the product is used, which is flexible and adaptable.
2.The NobTra radar speed measurement system can use the mobile phone APP to set parameters within 10 meters, and can support Android and Hongmeng operating systems. Simple, convenient and easy to set up.
3.Imported raw materials (including Taiwan-made) high-brightness light-emitting diodes (LEDs), higher brightness and longer life, the lamp beads are eye-catching and distinct in color, and have good visibility both during the day and at night
4.The 24-hour capture function supports capture during the day and night, and the effect is good even at night. The capturing
distance can reach 18-35 meters. As long as the vehicle enters the capturing area, the license plate number can be captured.
5.LPR camera matched to NobTra radar speed measurementThe system’s maximum resolution can reach 2 million pixels,Output real-time images, support SD card, maximum 256G,Suitable for day and night. Multi-layer optical lenses The picture quality is clear and the scene is restored to reality.The designed 4G port can be connected to the control center later.LPR cameras perfectly identify multiple countries and regions:The recognition rate can reach 99%
6.The warning words on the NobTra radar speed sign support customization of the language of each country. Direct selling manufacturer, you can set text characters for free.
7.NobTra radar speed measurement system supports a variety of power supply methods (solar, AC, current or battery). Solar power supply continuous rainy days for 7-10 working days. You can choose according to your needs, there must be what you want.
8.The NobTra radar speed limit sign is sealed and waterproof, and can adapt to all kinds of bad weather.,The use of silicone three-proof paint, evenly brushed on one side of the PCB circuit, can effectively prevent moisture, salt spray, anti-static, anti-mildew, and other characteristics
Product Feature
| 1.The mobile phone APP to set parameters within 10 meters, and can supportApple,Android and Hongmeng operating systems. |
| 2.There are ten levels of sensitivity.1 is the highest sensitivity and 10 is the lowest sensitivity. |
| 3.There are ten levels of brightness.1 is the darkest and 10 is the brightest |
| 4.Imported professional traffic radar is adopted, with high-precision vehicle real-time display function, accurate and reliable speed measurement results, strong anti-drying ability and high precision |
| 5.Radar speed limit card supports customization, which are 30,40,50,60....or other customized values |
| 6.NobTra radar speed speed sign is sealed and waterproof, and can adapt to all kinds of bad weather. |
| 7.Solar power supply continuous rainy days for 7-10 working day. |
Quality warranty
The LPR traffic speed limit sign with 2 years quality warranty. During the warranty period, if the product quality appear the quality
problems, we will send the parts to you for replacement.
Shipping Method
1. Shipping by TNT, DHL, Fedex, UPS, Special line and so on.
2. Shipping by Air. With fast delviery.
3. Shipping by Train. With long delivery time, But the shipping costs will be competitive.
4. Shipping by Sea. If the order quantity was large. This will be good shipping way.
5. FOB shen zhen, ningbo, foshan, dongwan and so on.
FAQ:
Question1: What power options are available?
Answer1: All of the radar signs can be made in either Solar Powered or AC Powered and some have the option to be Battery operated.
Question2: What is the warranty?
Question2: With 2 years quality warranty. If the accessories had broken and due to the quality problems. We will send a new parts for replacement.
Question3: Whether support the phone app and PC app operate?
Answer3: We provide the phone App and PC app and details user manual.
Question4: Do you accept the OEM?
Answer4: Yes, we have professional R&D department. Base on your actual demand, we can OEM the product for you.
Question 5: Do you provide the techical support for the product setting and installation?
Answer5: We have details instruction. If you don't know how to setting, we will send you a details operate video.
Question6: What's MOQ?
Answer6: MOQ was 1pcs
Question7: Are you a manufacturer or trading company?
Answer7: MOQ was 1pcs
