Traffic Sign Reflective Highway Solar Electric Warning Speed Radar Limited
Product Parameters:
| Product type: |
NBTR88-S30-A |
| Working temperature: |
-40 degree to 60 degree |
| Power consumption: |
Red: 4.8 watt Green: 3.85watt |
| Installation height: |
2.5-4 meters |
| Integrated radar working frequency: |
24.125GHZ |
| Display |
Vehicle speed |
| Radar Detection distance |
Standard with 200 Meters |
| Application: |
Used for the intersection or highway |
| Body Material: |
cold-roll -steel sheets |
| Mounting: |
With mounting bracket |
| Quality warranty: |
1 years |
| Glue Filling Process |
Using the full glue filling process |
| Radar working frequency |
24.150GHZ |
| Light lifespan working time: |
1000 hours/ 3 days |
| Parameters setting |
Phone App |
| Visible distance: |
>300 Meters |
| PCB material |
Epoxy glass cloth laminate (FR4) |
| Front speed limit panel |
30 km/40/50/60(optional) |

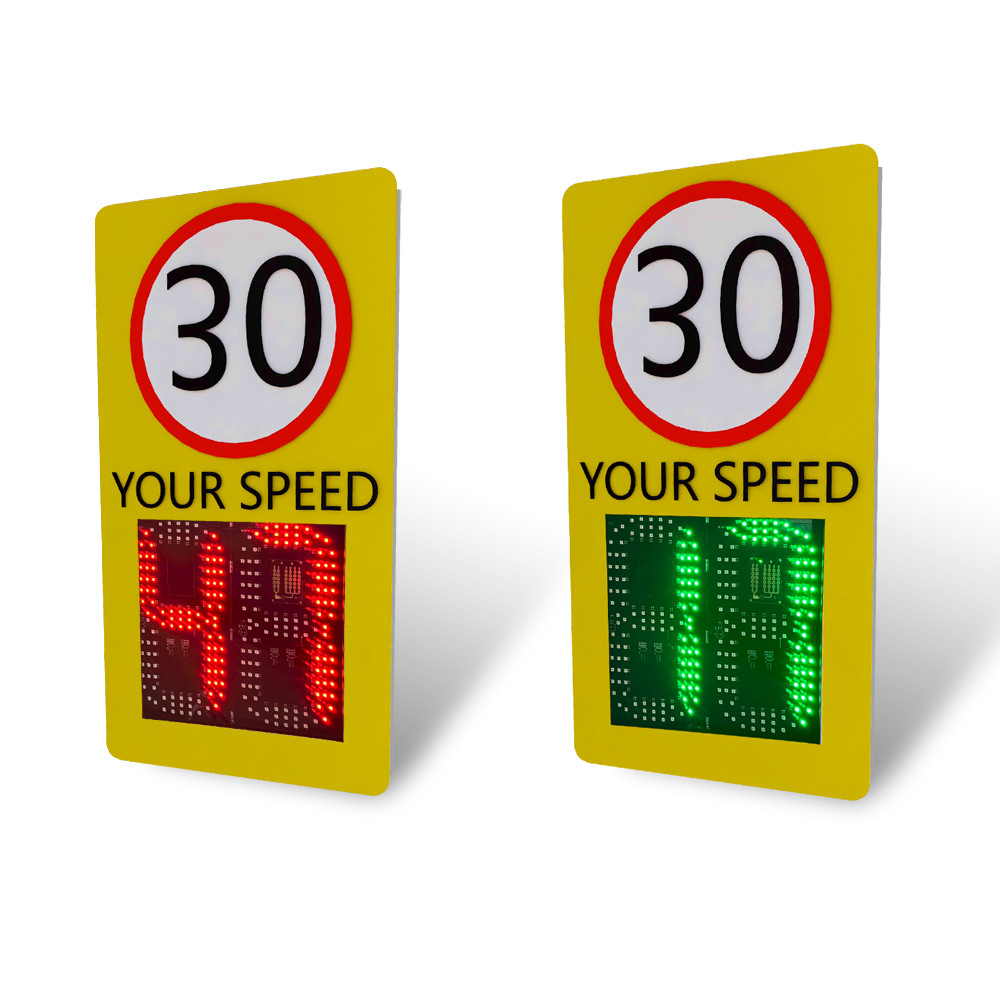

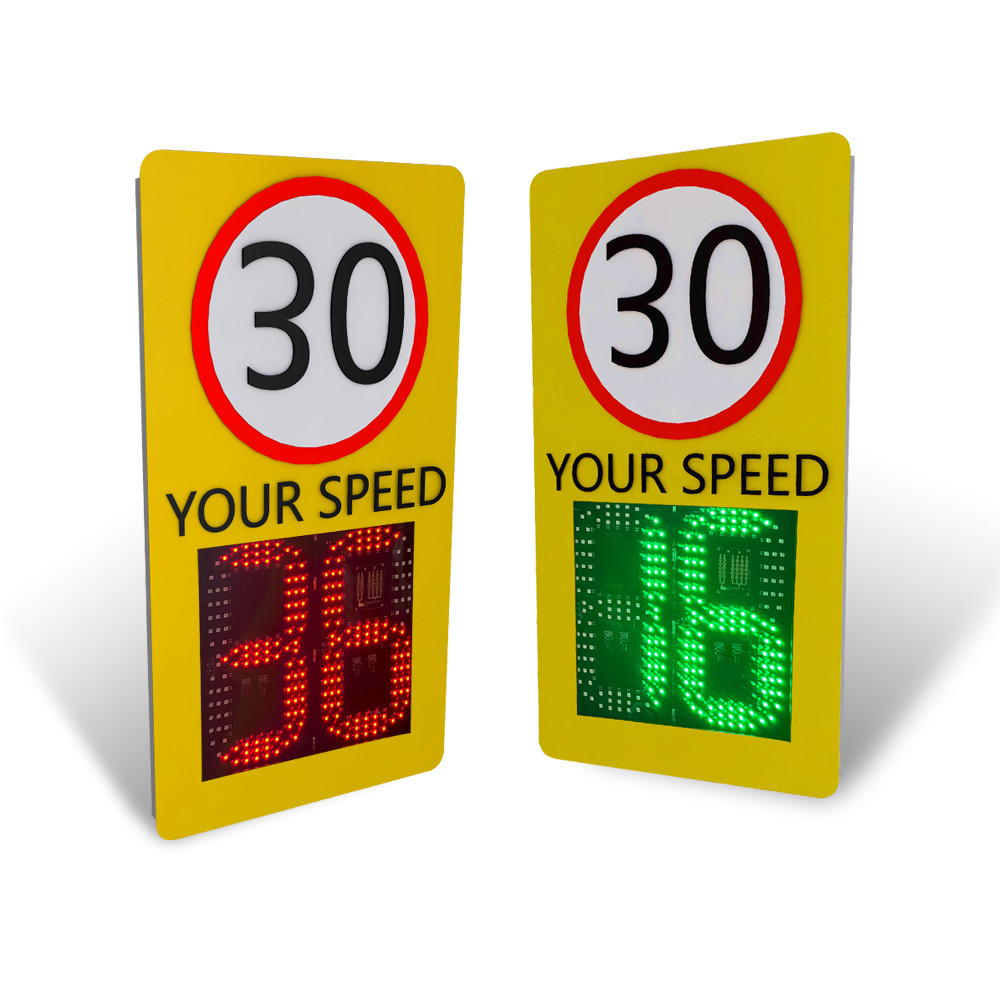

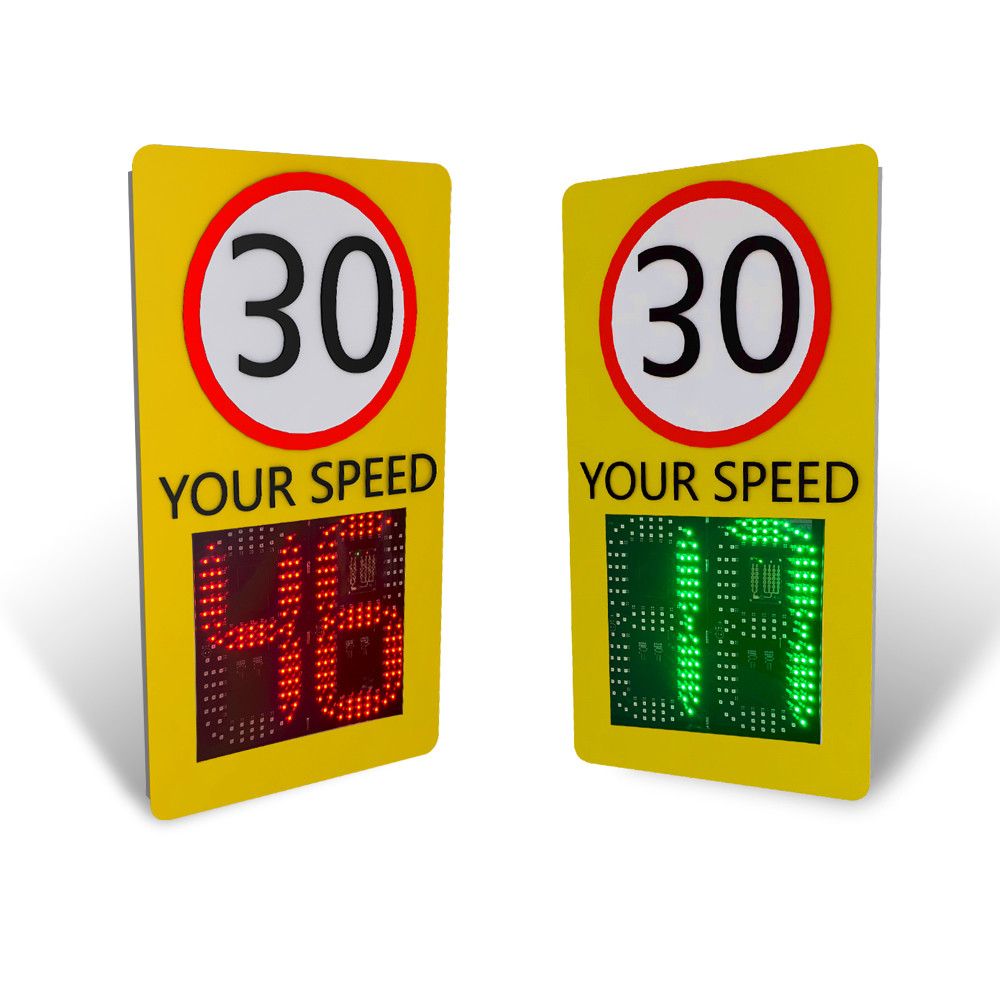

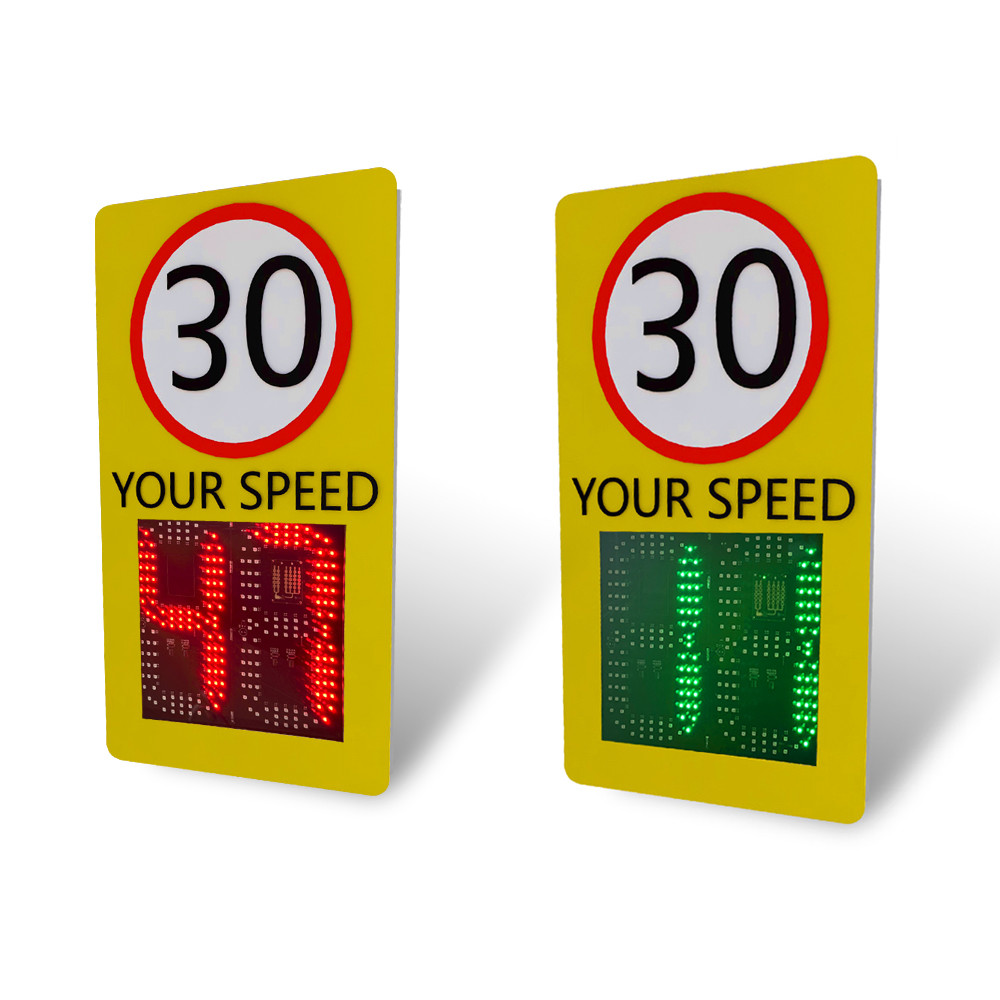

Details Pictures Display
Product advantage
1.The speed limit panel of the NobTra radar speed limit card supports customization,which are 30,40,50,60....or othercustomized values.
2. Imported raw meterials(including Taiwan-made) high-brightness light-emitting diodes(LEDs),higher brightness and longer life, the lamp beads are eye-catching and distinct in color, and have good visibility both during the day and at night. LED modules and LED lamp beads style are optional.
3.The Nobtra radar speed system is made of high-quality cold-rolled steel,which is 2mm thick galvanized cold-rolled
open-rolled board,with overall baking paint inside and outside, beautiful appearance design, impact
resistance,anti-aging,corrosion resistance,waterproof and dustproof.
4,All-day snapshot function,the system has a large capacity, can store 20,000 illegal speeding records,and supports mobile APP to view the snapshot records.The license plate captured by the camera will display the license plate number on the display.
5,The NobTra radar speed measurement system adopts professional traffic radar imported from Germany,with high-precision vehicle speed real-time display function,accurate and reliable speed measurement results,strong anti-interference ability and high precision.Divided into built-in models and external models,you can choose the style you like.
6,The Nobtra radar speed system can adjust the brightness using the mobile APP,and there are ten levels of brightness.1 is the darkest and 10 is the brightest.The brightness can be adjusted according to the environment in which the product is used,which is flexible and adaptable.
7. The NobTra radar speed system can use the mobile phone APP to adjust the sensitivity,there are ten levels of
sensitivity.Where 1 is the highest sensitivity and 10 is the lowest sensitivity.The sensitivity can be adjusted according to the enviroment in which the product is used,meet the needs of various projects.
Why Need Speed Radar Detector Limit Sign?
Speed Radar Detector Limit detects speeding vehicle by radar to warn motorists that their speed has exceeded the limit and displays their speed, timely reminds the drivers to slow down. Effectively reducing the road traffic accidents which is caused by over-speed.
Package information:
| 1 Carton |
1 Set |
| Carton size |
101x15x57cm |
| G/W: |
17.2KG |
| Production time: |
4-5 working day for the sample order
6-10 working day for the 10-50pcs
11-15 working day for 51-100pcs
|
Shipping method
1. Shipping by UPS, TNT, Fedex, DHL and special line.
2. Delivery by Sea. If you want to save some costs and not need goods urgent.
3. Delivery by Air. The shipping costs will be expensive. But the delivery time will be short.
4. Shipping by Train. The delivery time will be long. But you can save some shipping costs.
5. FOB shen Zhen. Guangzhou, Dongwan, Ningbo and so on.
Terms of payment
1. TT bank transfer. We can provide the USD, RMB, EUR account.
2. Provide the Paypal account.
3. With the Alipay and WeChat account.
4. In Cash.
Product Feature:
| 1.The mobile phone APP to set parameters within 10 meters, and can supportApple,Android and Hongmeng operating systems. |
| 2.There are ten levels of sensitivity.1 is the highest sensitivity and 10 is the lowest sensitivity. |
| 3.There are ten levels of brightness.1 is the darkest and 10 is the brightest |
| 4.Imported professional traffic radar is adopted, with high-precision vehicle real-time display function, accurate and reliable speed measurement results, strong anti-drying ability and high precision |
| 5.Radar speed limit card supports customization, which are 30,40,50,60....or other customized values |
| 6.NobTra radar speed speed sign is sealed and waterproof, and can adapt to all kinds of bad weather. |
| 7.Solar power supply continuous rainy days for 7-10 working day. |
FAQ:
Question1: What power options are available?
Answer1: All of the radar signs can be made in either Solar Powered or AC Powered and some have the option to be Battery operated.
Question2: What is the warranty?
Question2: With 1 years quality warranty. If the accessories had broken and due to the quality problems. We will send a new parts for replacement.
Question3: Whether support the phone app and PC app operate?
Answer3: We provide the phone App and PC app and details user manual.
Question4: Do you accept the OEM?
Answer4: Yes, we have professional R&D department. Base on your actual demand, we can OEM the product for you.
Question 5: Do you provide the techical support for the product setting and installation?
Answer5: We have details instruction. If you don't know how to setting, we will send you a details operate video.
Question6: What's MOQ?
Answer6: MOQ was 1pcs
