| Place of Origin: | China |
|---|---|
| Brand Name: | NobTra |
| Certification: | CE, ROHS |
| Model Number: | NBP10-L4 |
| Minimum Order Quantity: | 1 set |
| Price: | 1≤Qty≤10: 302.8USD 11≤Qty≤50: 296.75USD 51≤Qty≤300: 290.8USD |
| Packaging Details: | carton, 77*77*19cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per month |
| Material: | Aluminum,Iron With Coated,Aluminum Or As Your Request,Aluminum Panel And Reflective Film,Iron Box And Aluminum Fixed Slot | Application: | School,traffic Safety,highway,Urban Expressway |
|---|---|---|---|
| Solar Panel: | 100W,60w | Product Name: | Slow Down Road Speed Limited Sign Dynamic Radar Speed Display |
| Led Color: | Amber,Red And Green | Battery: | 12v 55ah,li Battery 50AH |
| Color: | Customized Color | Type: | Safety Solar Warning Traffic Sign,Led Radar Sign |
| Sample: | Sample Can Be Available | Voltage: | 12/24V |
| Reflective Film: | 3M Engineering Grade | Power: | Solar Or Electrical |
| Power Supply: | Solar Power Or 220V Main Pwer | Feature: | Durable,Anti UV And High Intensity Reflective Film,Customer Design,High Visibility |
| Speed Range: | 10km/h-250km/h | Accuracy: | ± 1 MPH (or KM/H) |
| Radar: | 24.150 Ghz (K-band) |
Product Description

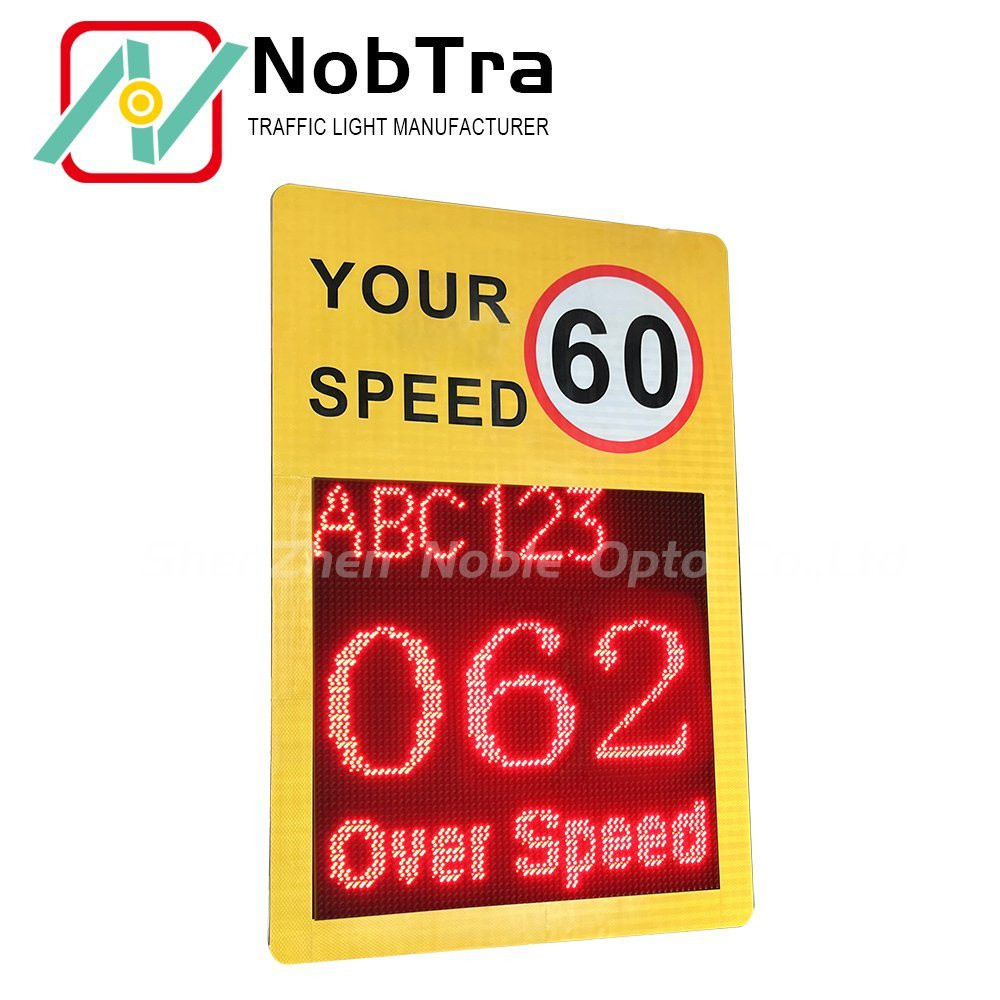

The LPR (License Plate Recognition) Radar Speed Sign from Shenzhen Noble Opto Co., Ltd. is an innovative traffic management device that combines sophisticated radar technology with advanced license plate recognition. Designed to accurately monitor vehicle speeds and capture real-time license plate information, this system is crucial for enhancing road safety and supporting traffic law enforcement. The radar provides precise speed measurements of incoming vehicles, while the high-definition camera captures clear license plate images. This dual functionality is essential for enforcing traffic regulations, conducting detailed traffic analysis, and improving public safety by alerting drivers to their speed. Ideal for busy areas, school zones, and other critical locations, the LPR radar speed sign is a vital component of modern traffic management systems.
Noble Opto's traffic speed signs are known for their user-friendly operation and quick setup, enhanced by a dedicated app for easy configuration of sign parameters. With ten adjustable sensitivity and brightness levels, these signs can adapt to various environmental conditions. The robust system can store up to 20,000 speeding incidents, complete with vehicle photographs, all accessible via the app. Choose Noble Opto for the ultimate in convenience and security provided by cutting-edge technology.
| LED Screen | 640 x 640mm |
| Front speed limit panel | 30 km/40/50/60(optional) |
| Display Color | Red and green |
| Raw material | Imported raw materials (including Taiwan-made) high-brightness light-emitting diodes (LEDs) |
| Light decay | 10000h/3 years working time, light decay (mcd)≤20% |
| Material | 3M engineering grade |
| Glue filling process | Using the full glue-filling process, all parts of the circuit board visible to the naked eye are full of glue |
| Solar panel | 60watt |
| Battery | 3pcs 13ah lithium battery |
| Mounting Height | 2.5 - 4m |
| Standard Mounting | 60mm galvanised steel column |
| Continuous rainy days | 7-10 days |
| Visible distance | Above 300 Meters |
| PCB material | The use of silicone three-proof paint, evenly brushed on one side of the PCB circuit, can effectively prevent moisture, salt spray, anti-static, anti-mildew, and other characteristics |
| Warranty Period | 1 year |
| Waterproof level | IP 54 |
| Certified | ISO 9001:2015,CE |

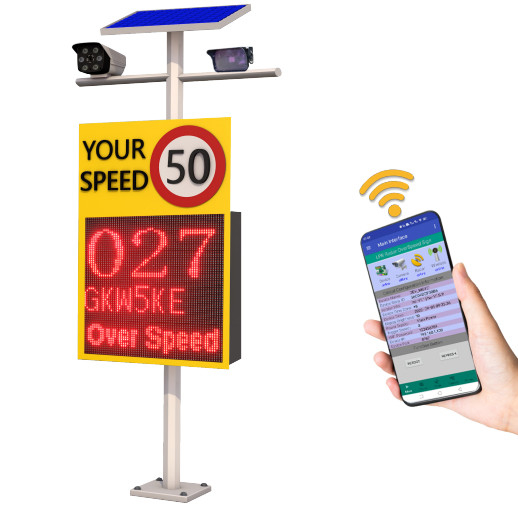

Our device offers phone or PC software to set the parameters using Wi-Fi connection.
Additionally, with a highly advanced LPR camera, our device can capture the license plate of even the fastest speeding vehicles and quickly send that data to the control center for prompt action.
The device supports custom text, boasting a 4-line display that allows users to create their own LED texts and graphics with the LED editor.
Users can also view and download 20,000 license plate records for their convenience.
To analyze ambient air quality and improve the usability of our product, users can add a PM 2.5 module to detect and store PM 2.5 records.
The device date can be transmitted to the control center via 4G router to realize remote control, providing complete peace of mind for users.
As for power supply, our product can be easily used with a 220V mains power supply or combined with a solar panel and battery power supply.
If you live in an area that is not convenient to use electricity, like remote speed-limited sections or highways, the solar power supply is the perfect solution.
Installation Diagram
