Microwave motion sensor for industrial doors

Microwave motion sensor for industrial doors
Microwave motion sensor for industrial doors
Microwave motion sensor for industrial doors Microwave motion sensor for industrial doors Microwave motion sensor for industrial doors Microwave motion sensor for industrial doors Microwave motion sensor for industrial doors
Basic Information
Place of Origin: China
Brand Name: NobTra
Model Number: RVP42-9M
Minimum Order Quantity: 10
Price: USD55-75
Packaging Details: Carton
Delivery Time: sample:1-2day, order:5-10days
Payment Terms: T/T, Western Union
Supply Ability: 5000/M
Get Best Price Contact Now
Detail Information
Installtion Angle: 180 Degrees Operating Current: ≤ 75mA
Ip Rating: IP65 Alarm Output: Normally Open Or Normally Closed
Material: ABS Installation Height: 0.6-2.7 Feet
Operating Voltage: 12-24VDC Sensitivity: Adjustable
Detection Range: Up To 2.7 Feet Working Temperature: -20°C To 50°C
Detection Technology: Microwave

Product Description

Microwave motion sensor for industrial doors


Microwave motion sensor Product Description

Product Description

24GHz Microwave Radar Sensor

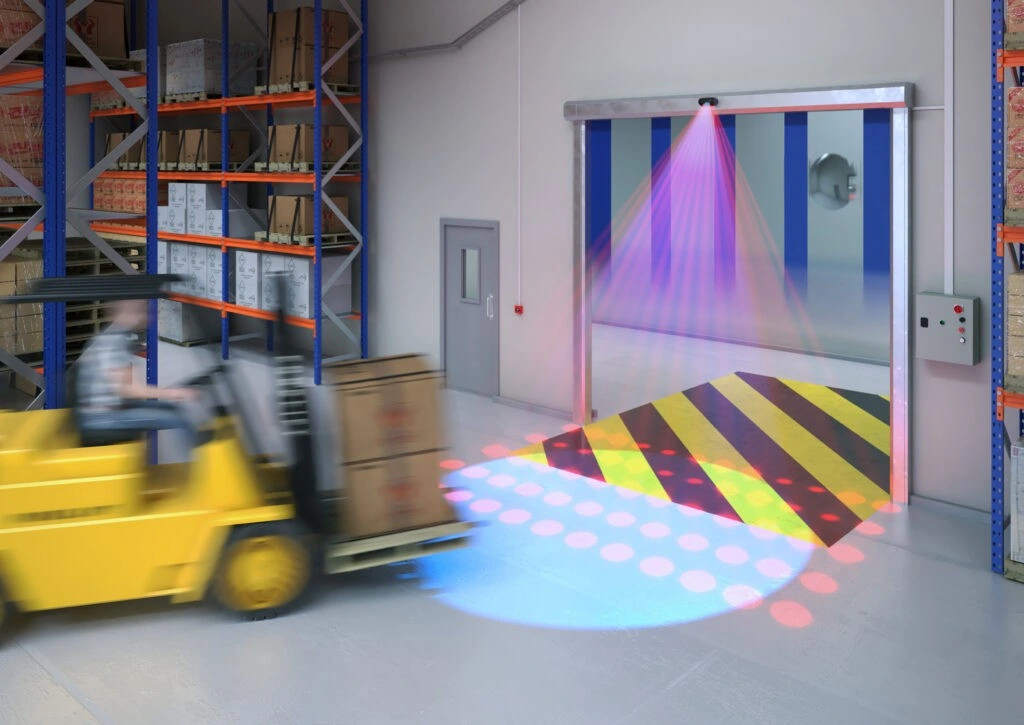

The RVP42-9M microwave sensors have been specially designed to increase the comfort of opening all types of automatic doors. The RVP42-9M microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation, these sensors will fit on every header or ceiling in any application you can imagine.
Microwave motion sensor for industrial doors 0

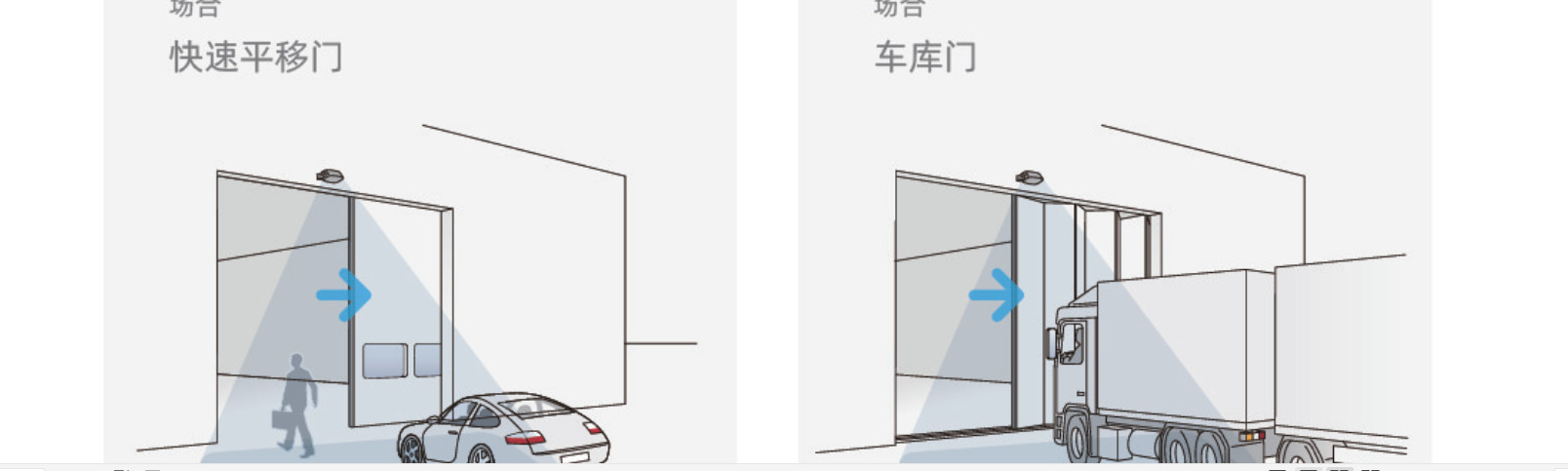

It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.

Microwave Motion Detectors for Detect Moving Vehicles


Basic Info.

Model NO.
RVP42-9M
Certification
FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Application
Home, Industry, Communication Electronic Products, Special Equipment, Car/Motorcycle, Traffic
Description
Activation & Safety Sensors
Output
2 Relays Output. 2A@12V
Power Supply
12-36VDC
Frequency
24.125GHz
Power
<20dBm
Detection Height
2m to 9m
Installation Adjustment
0-180 Degree Vertical
Detection Speed
5 Cm/S to 25km/S
Detection Area(30 Degree Angle)
3.0m*3.5m @ Height: 2m; 6.5m*8.5m @ Height: 9m
Working Current
Max.75mA
Power Frequency
50Hz
Working Temperature
-30 to +60
Color
Black
IP Level
IP65
Transport Package
Carton
Specification
1unit package 14*9*5.5cm
Trademark
NobTra
Origin
Shenzhen
HS Code
9031809090
Production Capacity
50000/M

Packaging & Delivery

Package Size
27.50cm * 13.00cm * 5.50cm
Package Gross Weight
0.800kg
Lead Time
3 days (1 - 1 Pieces)
5 days (2 - 20 Pieces)
7 days (21 - 30 Pieces)
To be negotiated ( > 30 Pieces)

Product Parameters


Specification

Application technology Doppler radar
Transmission frequency 24.125 GHz
Transmission power <20dBm
Detection height 2.0m to 9.0m
Angle adjustment 0°-180° longitudinal
Detection speed 5cm/s~25km/s
Detection area(30°Angle) 3.0m*3.5m @ height: 2m
6.5m*8.5m @ height: 9m
Operation voltage 12~36 VDC
Operation current Max. 75 mA
Power frequency 50 hz
Temperature range -30ºC to+60ºC
Relative humidity 0% to 95%, no condensation
Waterproof grade IP65
Relay output dry contact, 2A@12V
External dimensions 162mm × 110mm × 65mm
Cable length 7 m
Sensor weight 400 g
Our Advantages

Microwave motion sensor Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Microwave Motion Detectors for Detect Moving Vehicles
Microwave Motion Detectors for Detect Moving Vehicles

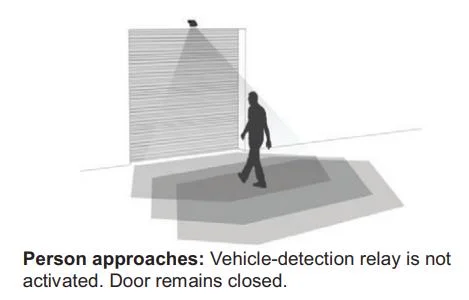

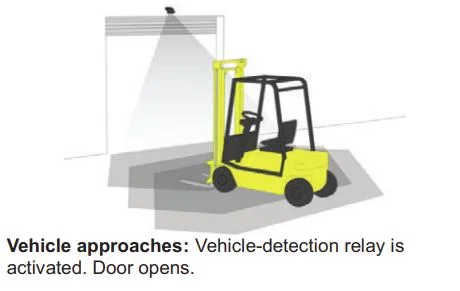

Dual Relays Outputs

It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay are both active

The below setting shows only active vehicle-detection mode, not for person-detection. it can be set according to your project requirements.
Microwave Motion Detectors for Detect Moving Vehicles
Microwave Motion Detectors for Detect Moving Vehicles

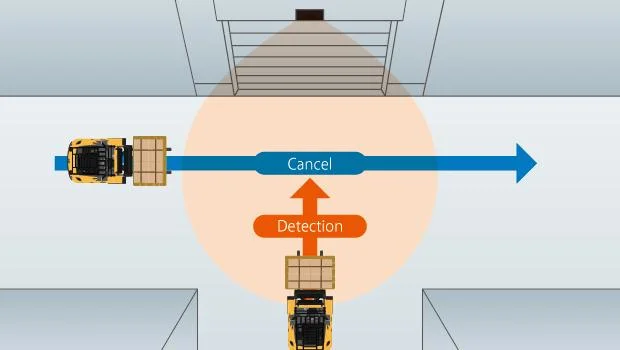

Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
Microwave Motion Detectors for Detect Moving Vehicles

Energy Savings

It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.


Speed up workflows

Open doors without having to stop and push a button. Install or Retrofit both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.

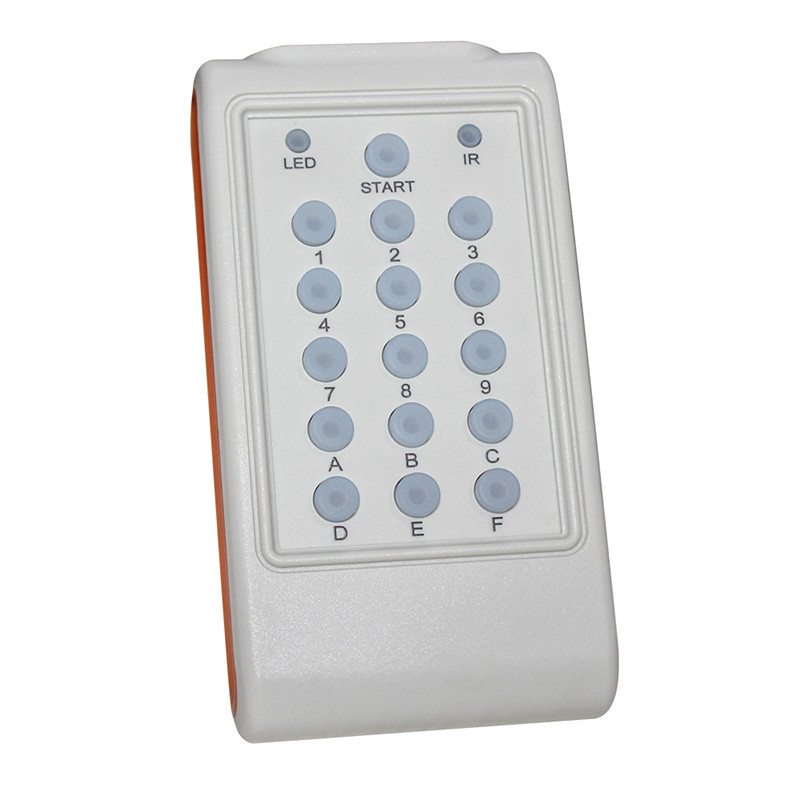

Remote Control Adjustments

Remote control programming enables the user to quickly and safely make changes from the ground.

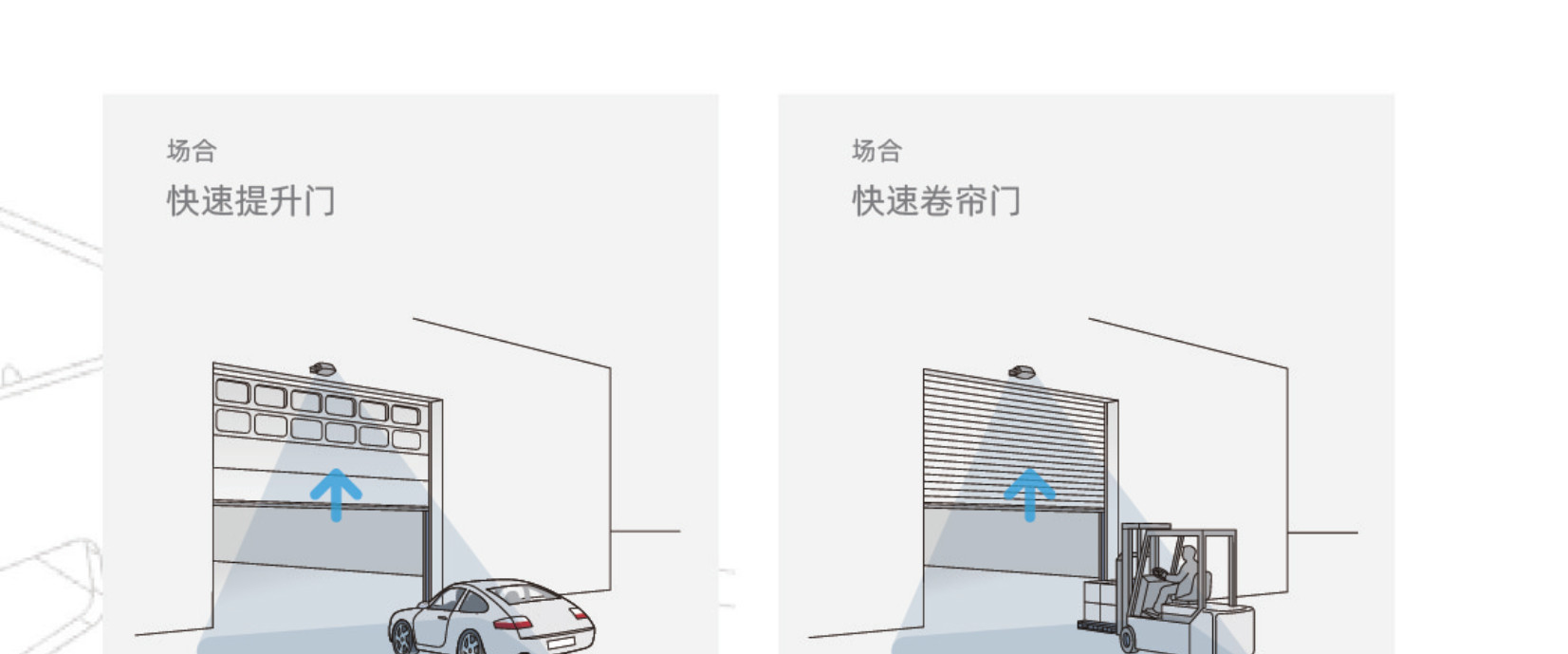

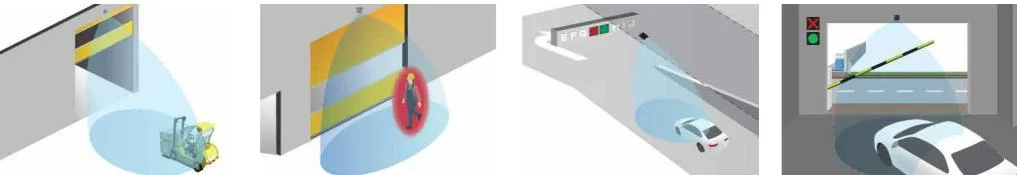

Applications


Factory entrances
Pedestrian and parallel traffic rejection
Parking garage detection
Barrier arm activation

Microwave Motion Detectors for Detect Moving Vehicles

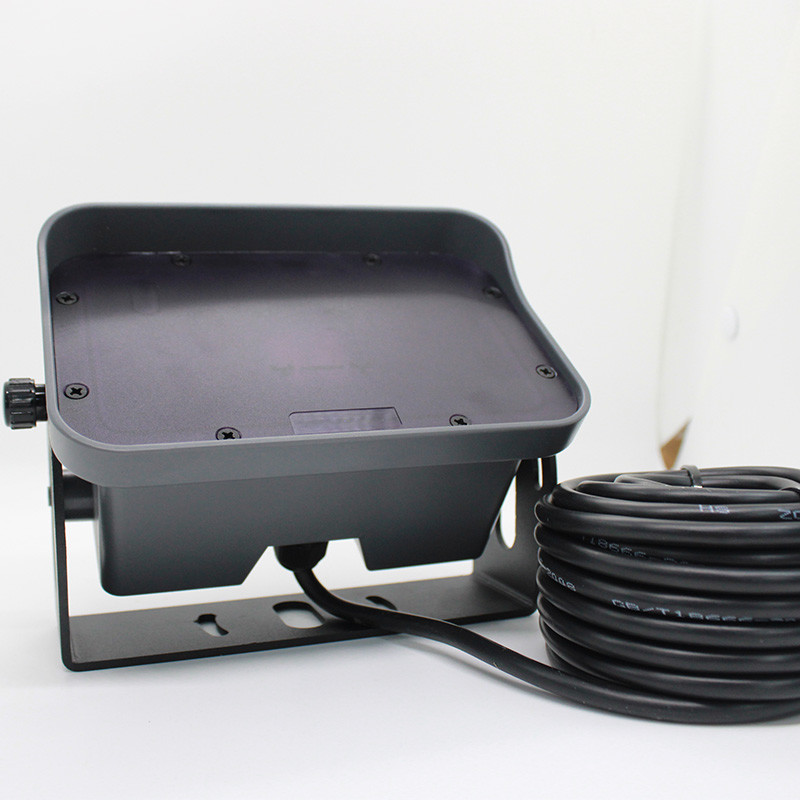

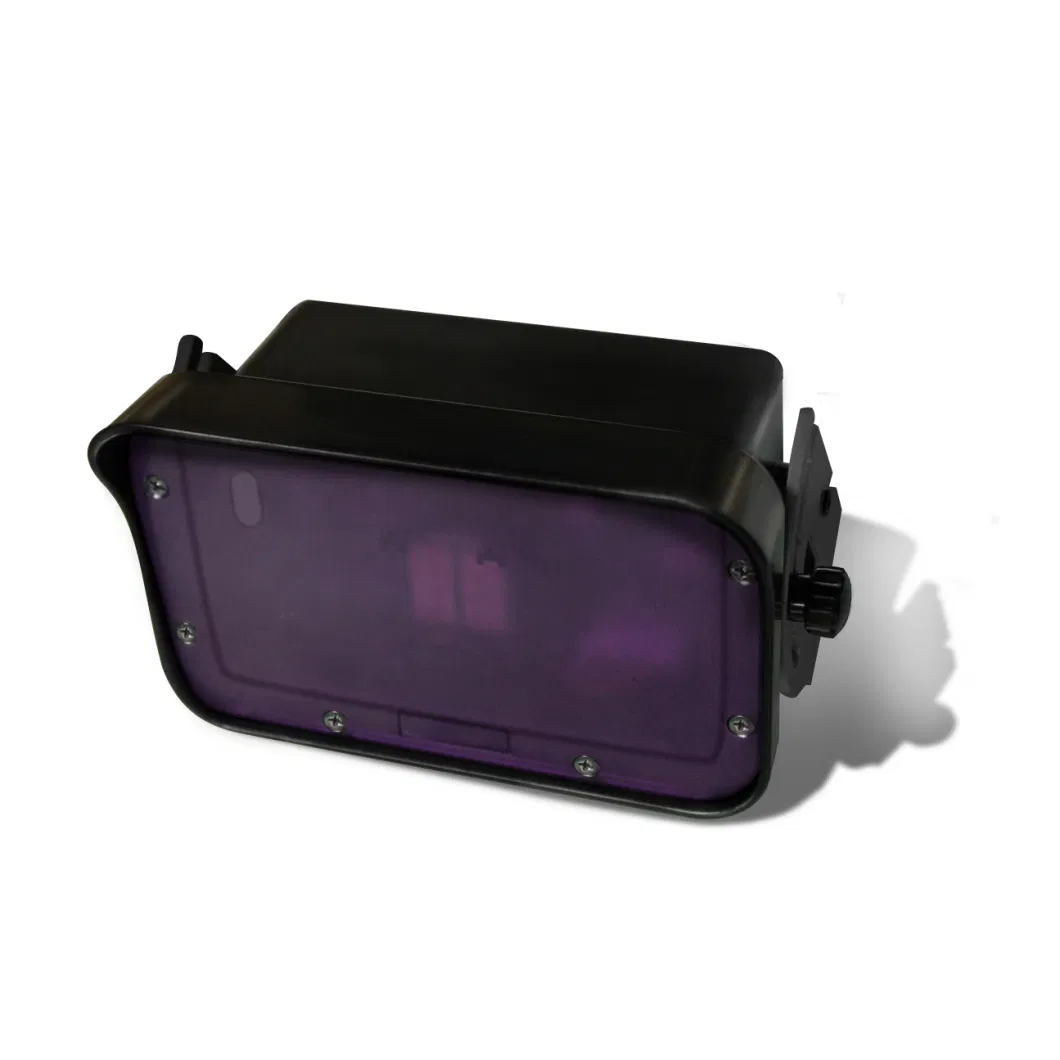

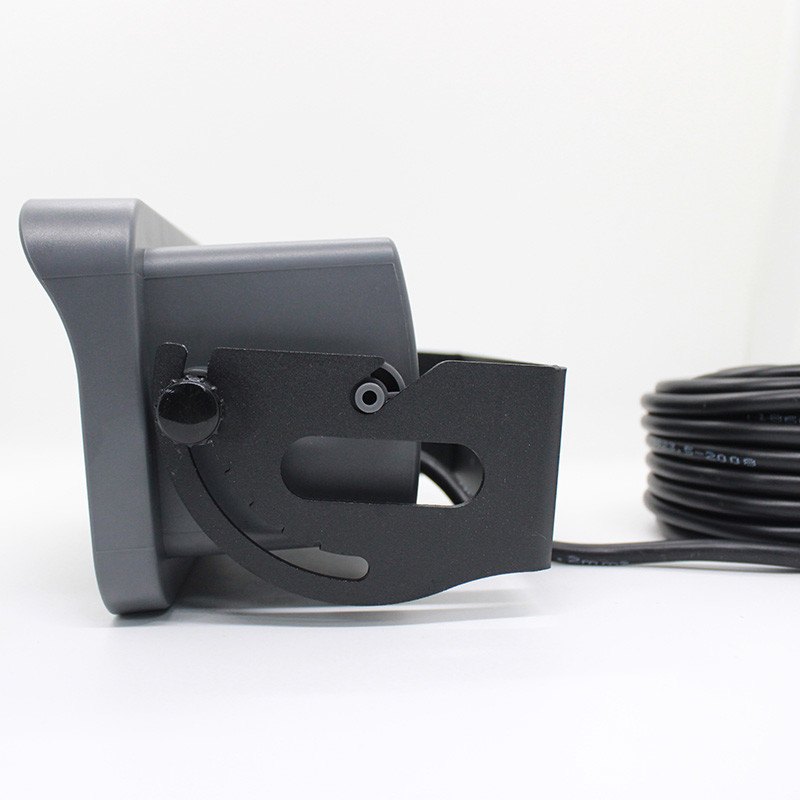

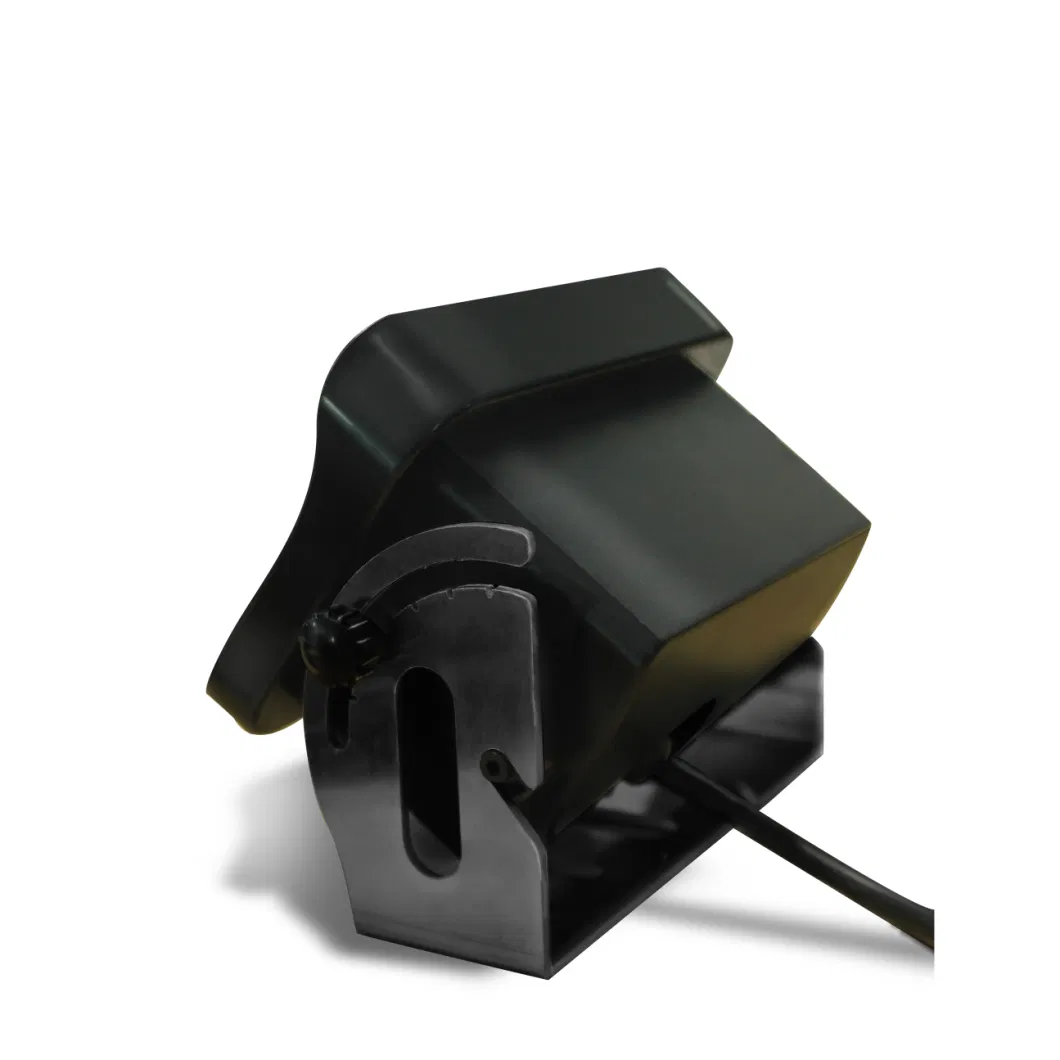

Details of NobTra Radar
Microwave motion sensor for industrial doors 8

Microwave motion sensor for industrial doors user manual:
Microwave-motion-sensor-for-industrial-doors.pdf
